SilergyDatasheet (PDF)

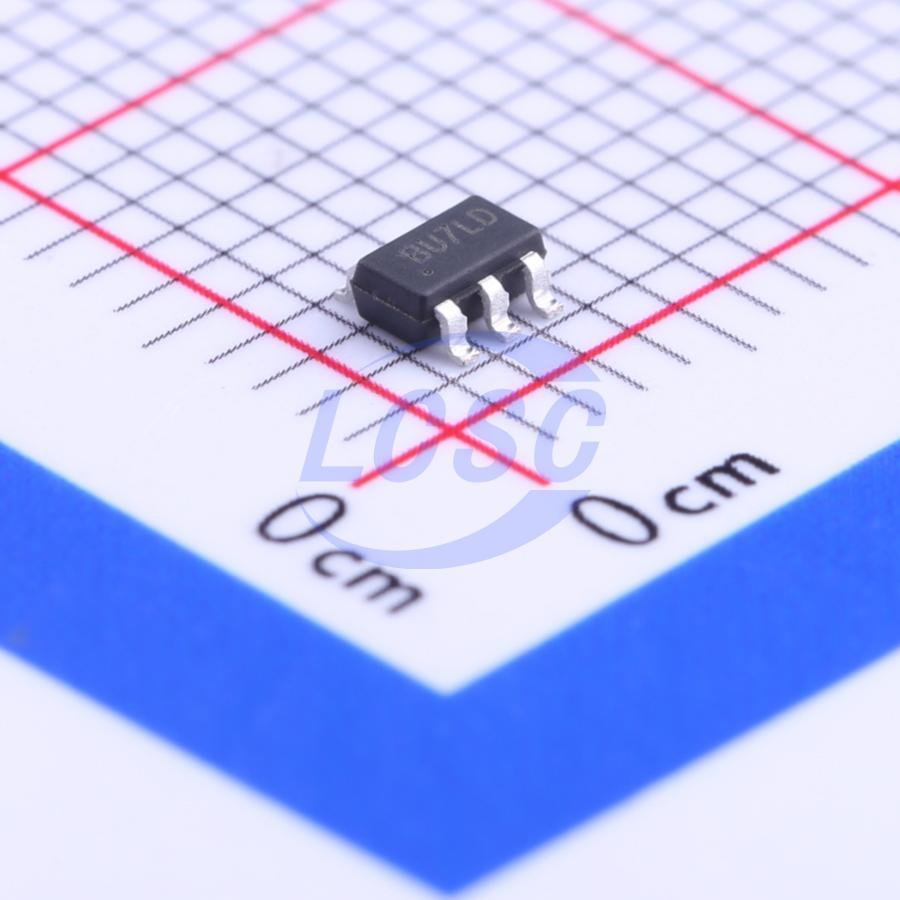

SY6288DAAC
1 Active Low 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6288DAAC
- Store part #
- C83700
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C83700
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.88 | ₹169.40 |
| 50+ | ₹26.43 | ₹1,321.50 |
| 150+ | ₹23.25 | ₹3,487.50 |
| 500+ | ₹19.25 | ₹9,625.00 |
| 3,000+ | ₹16.75 | ₹50,250.00 |
| 6,000+ | ₹15.68 | ₹94,080.00 |
5 × ₹33.88
₹169.40
excl. GST
₹199.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6288DAAC
₹169.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Soft-start;Under-voltage lockout
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 2A
- RDS(on)
- 80mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
SY6288 is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
Key features
- Distribution voltages: 2.5V to 5.5V
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- At shutdown, OUT can be forced higher than IN
- Fault flag (OCB) output for over current and fault conditions
- Automatic output discharge at shutdown
- Built-in softstart
- 0.4ms rise time
- RoHS Compliant and Halogen Free
- Two Enable polarities and three current levels
- Temperature Range: -40°C to 85°C
