SilergyDatasheet (PDF)

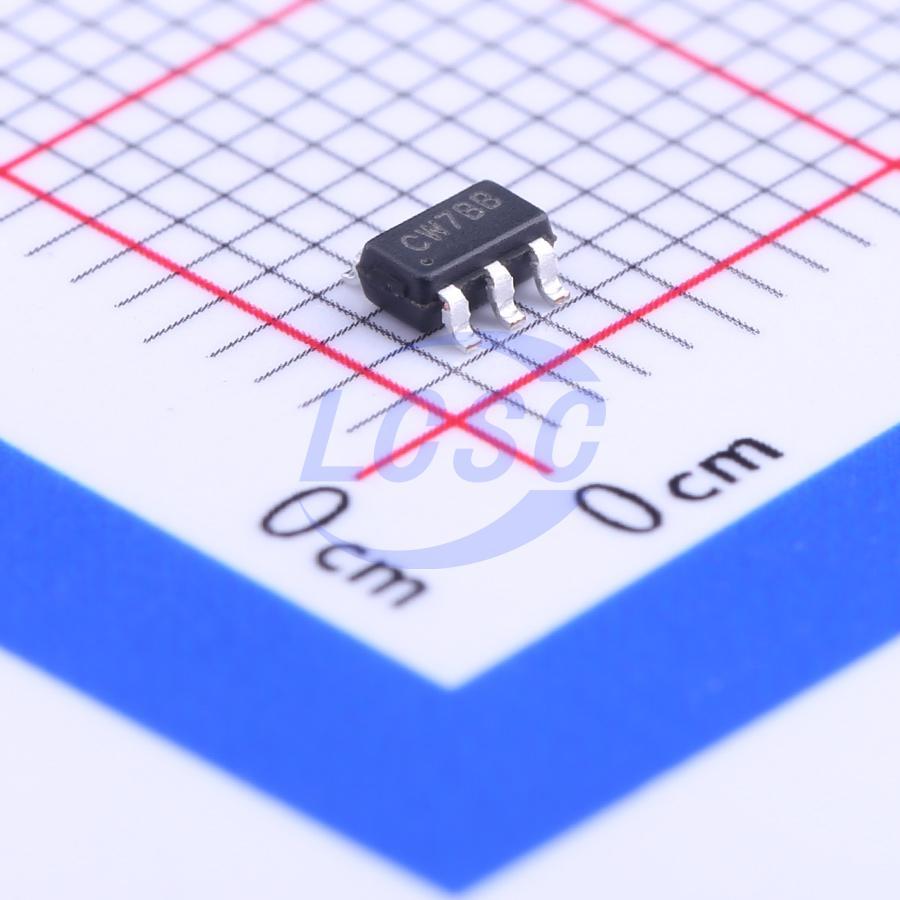

SY6288AAAC
1 Active High 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6288AAAC
- Store part #
- C111829
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,860 in stock
#C111829
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.91 | ₹119.55 |
| 50+ | ₹19.96 | ₹998.00 |
| 150+ | ₹17.99 | ₹2,698.50 |
| 500+ | ₹16.51 | ₹8,255.00 |
| 3,000+ | ₹14.80 | ₹44,400.00 |
| 6,000+ | ₹14.21 | ₹85,260.00 |
5 × ₹23.91
₹119.55
excl. GST
₹141.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6288AAAC
₹119.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- Operating Voltage
- 2.5V~5.5V
- RDS(on)
- 60mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
SY6288 is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
Key features
- Distribution voltages: 2.5V to 5.5V
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- At shutdown, OUT can be forced higher than IN
- Fault flag (OCB) output for over current and fault conditions
- Automatic output discharge at shutdown
- Built-in softstart
- 0.4ms rise time
- RoHS Compliant and Halogen Free
- Two Enable polarities and three current levels
- Temperature Range: -40°C to 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SY6288CAAC#C111830Silergy · SOT-23-5 | Silergy | SOT-23-5 | 14,135 | ₹21.75 · 14,135 in stock | View |
 | SY6288E1AAC#C207622Silergy · SOT-23-5 | Silergy | SOT-23-5 | 1,915 | ₹24.21 · 1,915 in stock | View |
