TC4S584F,LF

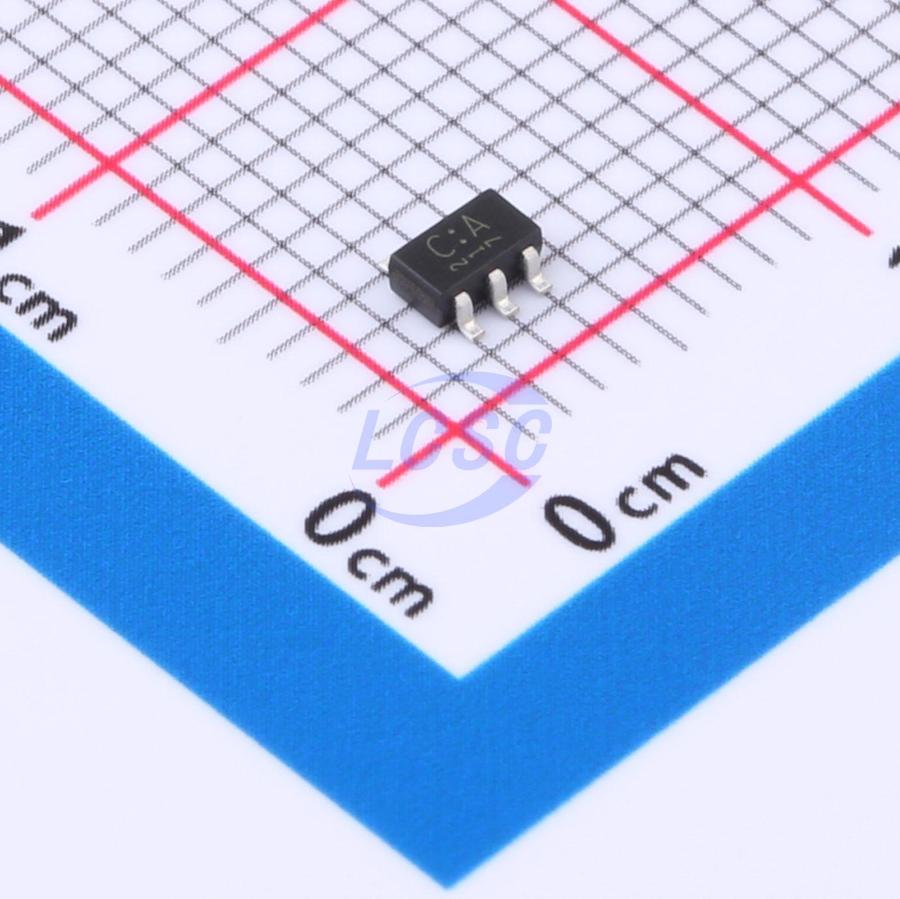

Schmitt trigger 3V~18V 120ns@15V,50pF 4uA 1 SOT-25-5 Gates and Inverters RoHS

SOT-25-5ROHS3 CompliantActive

CMOS Digital Integrated Circuit Schmitt Trigger

Manufacturer: TOSHIBA
Manufacturer part #: TC4S584F,LF
Store part #: C4153812
Package / case: SOT-25-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

32,420 in stock

#C4153812

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹21.96	₹109.80
50+	₹17.09	₹854.50
150+	₹15.02	₹2,253.00
500+	₹12.41	₹6,205.00
3,000+	₹11.25	₹33,750.00
6,000+	₹10.56	₹63,360.00

Quantity (min 5, multiples of 5)

5 × ₹21.96

₹109.80

excl. GST

₹129.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC4S584F,LF

₹109.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: TC4S
Voltage - Supply: 3V~18V
Propagation Delay: 120ns@15V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 3.35V~10.6V
Input Logic Level - Low: 1.1V~3.3V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 3.4mA
Number of Channels: 1
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

TC4S584F is the one circuit inverter having the schmitt trigger function at the input terminal. That is, since the circuit threshold level voltage at the leading and trailing edges of input waveform are different (V_P, V_N), the TC4S584F can be used in the broad range application, including line receiver, waveform shaping circuit, astable multivibrator, etc. In addition to ordinary inverter.
