TC7S08F,LF

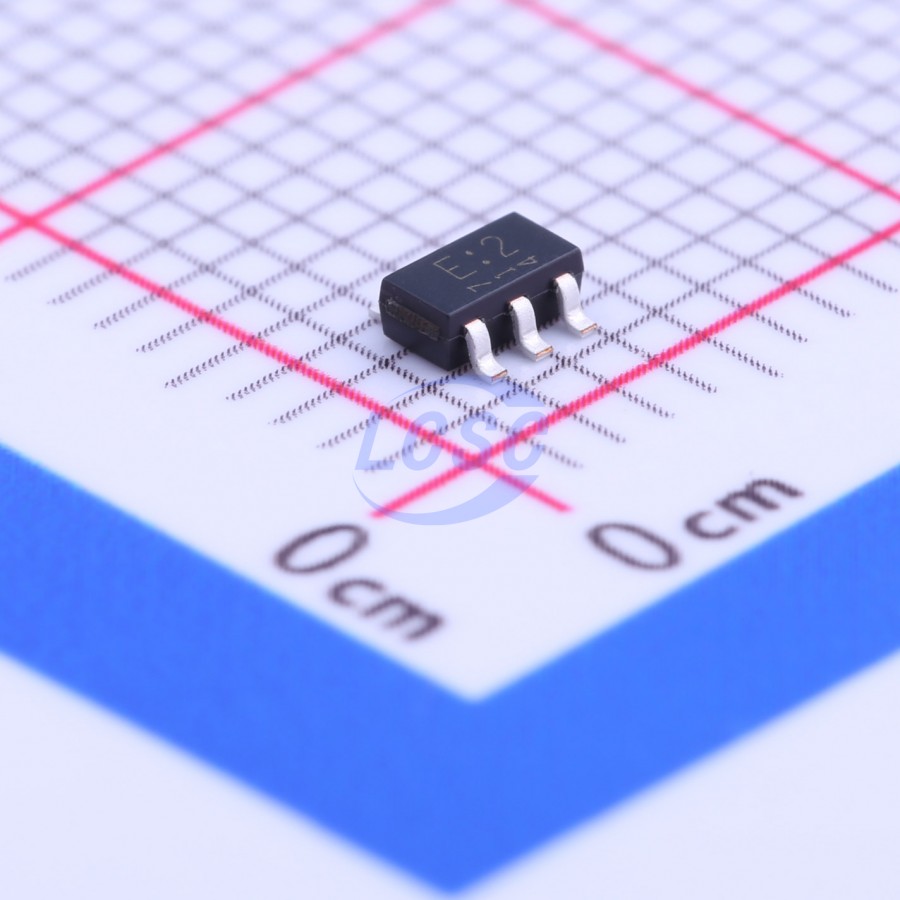

AND Gate IC SSOP-5-1.6mm
SSOP-5-1.6mmROHS3 CompliantActive
2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S08F,LF
- Store part #
- C146339
- Package / case
- SSOP-5-1.6mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,890 in stock
#C146339
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.51 | ₹67.55 |
| 50+ | ₹10.58 | ₹529.00 |
| 150+ | ₹9.13 | ₹1,369.50 |
| 500+ | ₹8.04 | ₹4,020.00 |
| 3,000+ | ₹7.17 | ₹21,510.00 |
| 6,000+ | ₹6.73 | ₹40,380.00 |
5 × ₹13.51
₹67.55
excl. GST
₹79.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S08F,LF
₹67.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Logic Family
- TC7S Series
- Output Logic Level - High
- 1.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 2.6mA
- Propagation Delay
- 15ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- High Speed : tpd = 7ns (typ.) at VCC = 5V
- Low power dissipation : lcc = 1 μA (max) at Ta = 25℃
- High noise immunity : VNH = VNL = 28% VCC (min)
- Output drive capability : 5 LSTTL Loads
- Symmetrical Output Impedance IIOHI = IIOLI = 2mA (min)
- Balanced propagation delays : tPLH ≒ tPHL
- Wide operating voltage range : VCC = 2 to 6V
