TOSHIBADatasheet (PDF)

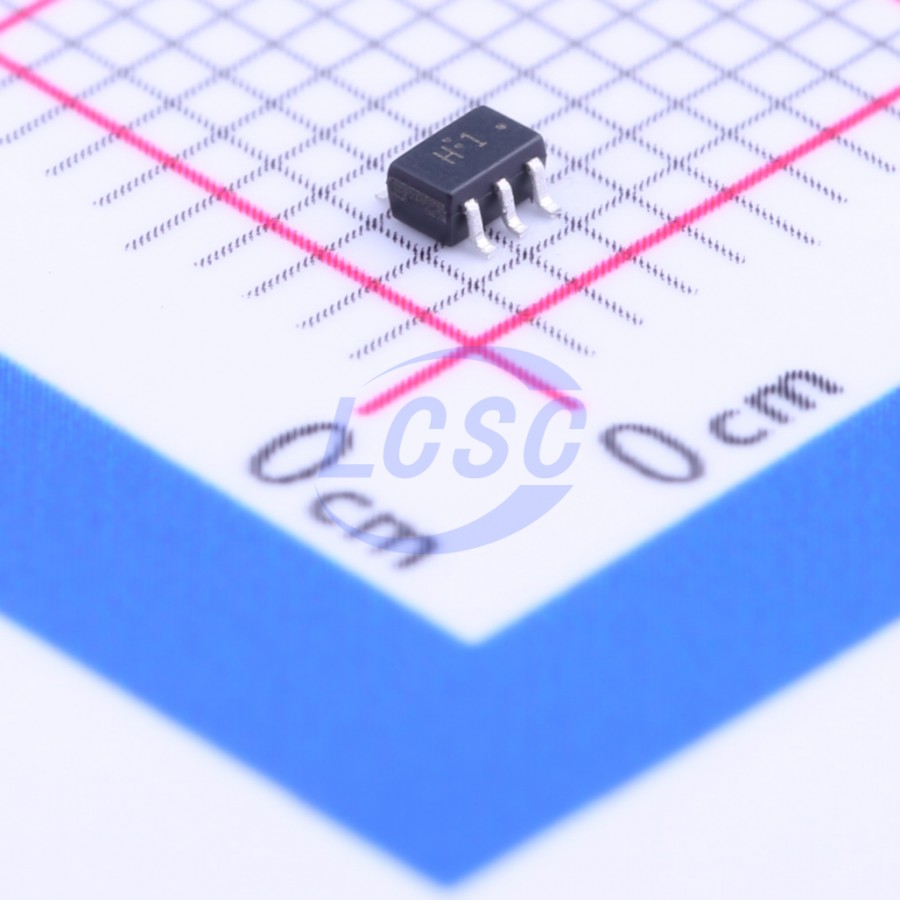

TC7SH00FU,LJ(CT
NAND Gate IC 1 Channel SOT-353
SOT-353ROHS3 CompliantActive
CMOS Digital Integrated Circuits 2-Input NAND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SH00FU,LJ(CT
- Store part #
- C146448
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,015 in stock
#C146448
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.73 | ₹78.65 |
| 50+ | ₹12.29 | ₹614.50 |
| 150+ | ₹10.57 | ₹1,585.50 |
| 500+ | ₹9.27 | ₹4,635.00 |
| 3,000+ | ₹8.24 | ₹24,720.00 |
| 6,000+ | ₹7.73 | ₹46,380.00 |
5 × ₹15.73
₹78.65
excl. GST
₹92.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH00FU,LJ(CT
₹78.65 for 5 + GST
Specifications
- Logic Family
- TC7SH Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 3.7ns@5V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 °C
- High speed operation: tpd = 3.7 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 °C)
- 5.5 V tolerant inputs
- Balanced Propagation Delay: tpH-L ≈ tpH-L
- Wide operating voltage range: VCC = 2.0 to 5.5 V
