TOSHIBADatasheet (PDF)

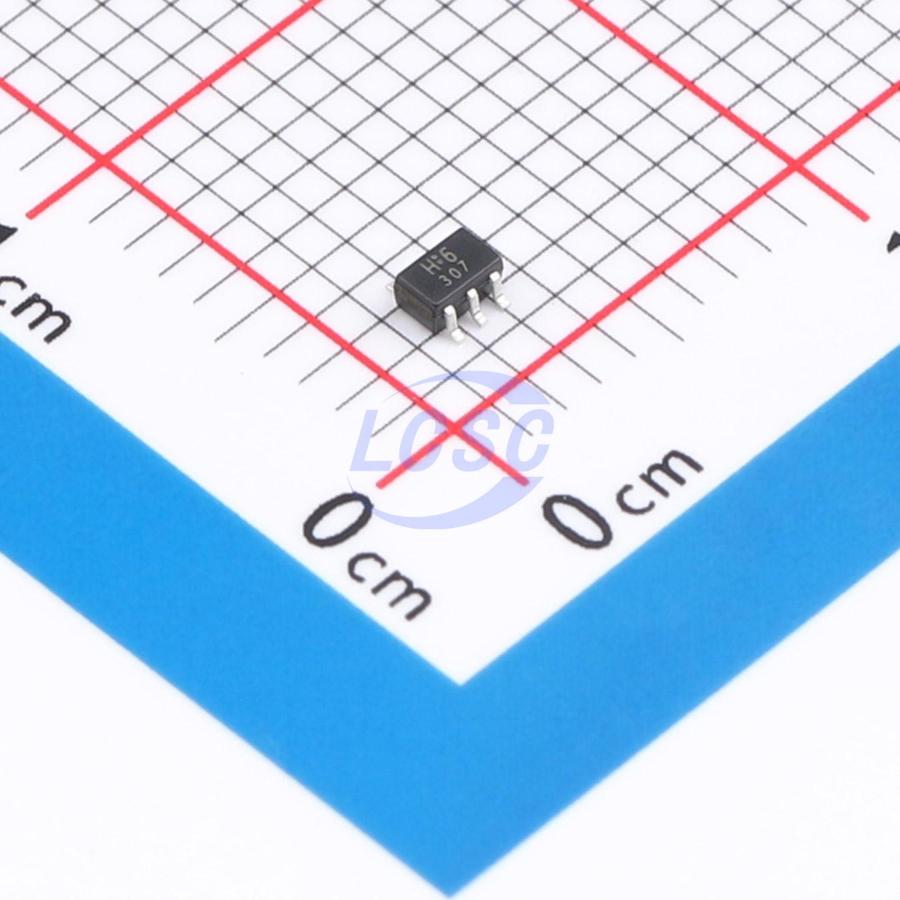

TC7SHU04FU,LJ(CT
2V~5.5V 7ns@5V,50pF 2uA 1 SSOP-5 Gates and Inverters RoHS
SSOP-5ROHS3 CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SHU04FU,LJ(CT
- Store part #
- C5981389
- Package / case
- SSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C5981389
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.38 | ₹81.90 |
| 50+ | ₹12.75 | ₹637.50 |
| 150+ | ₹10.94 | ₹1,641.00 |
| 500+ | ₹9.58 | ₹4,790.00 |
| 3,000+ | ₹8.48 | ₹25,440.00 |
| 6,000+ | ₹7.94 | ₹47,640.00 |
5 × ₹16.38
₹81.90
excl. GST
₹96.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SHU04FU,LJ(CT
₹81.90 for 5 + GST
Specifications
- Logic Family
- TC7SHU
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7ns@5V,50pF
- Input Logic Level - High
- 1.7V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 300mV
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125°C
- High-speed operation: tpd = 3.5 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power consumption: ICC = 2.0 μA (max.) (Ta = 25°C)
- High noise immunity: VNI_H = VNI_L = 10% VCC (min.)
- 5.5 V tolerant inputs
- Wide supply voltage range: VCC = 2.0 to 5.5 V
