UMWDatasheet (PDF)

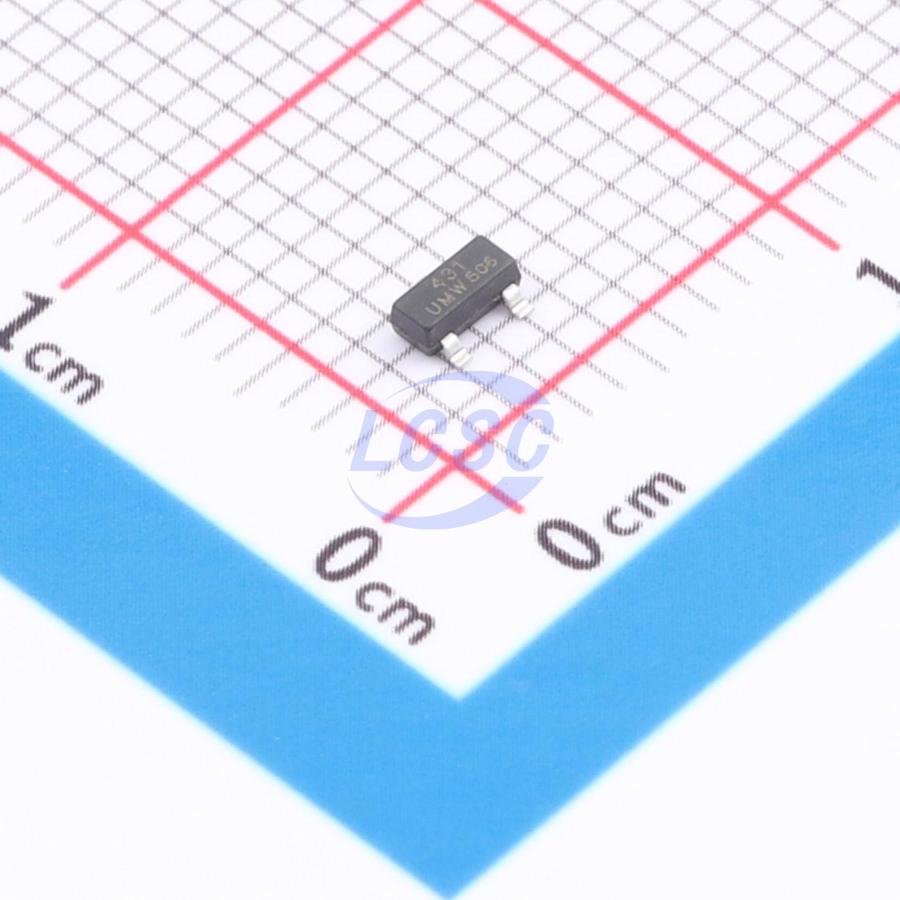

TL431(1%)
2.495V~36V ±1% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference
SOT-23RoHSActive
- Manufacturer
- UMW
- Manufacturer part #
- TL431(1%)
- Store part #
- C52740943
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,360 in stock
#C52740943
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.47 | ₹69.40 |
| 200+ | ₹2.67 | ₹534.00 |
| 600+ | ₹2.24 | ₹1,344.00 |
| 3,000+ | ₹1.97 | ₹5,910.00 |
| 9,000+ | ₹1.73 | ₹15,570.00 |
| 21,000+ | ₹1.61 | ₹33,810.00 |
20 × ₹3.47
₹69.40
excl. GST
₹81.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431(1%)
₹69.40 for 20 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 250uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
UMW TL431 is a series of three-terminal adjustable voltage regulators with guaranteed thermal stability over the operating temperature range. The output voltage can be set to any value between Vref and 36V using two external resistors. The device features a typical dynamic output impedance of 0.27Ω, and the active output circuit provides very sharp turn-on characteristics, making it an excellent replacement for Zener diodes in many applications.
Applications
- Precision voltage reference
- Linear regulator
- Adjustable power supply
