NexperiaDatasheet (PDF)

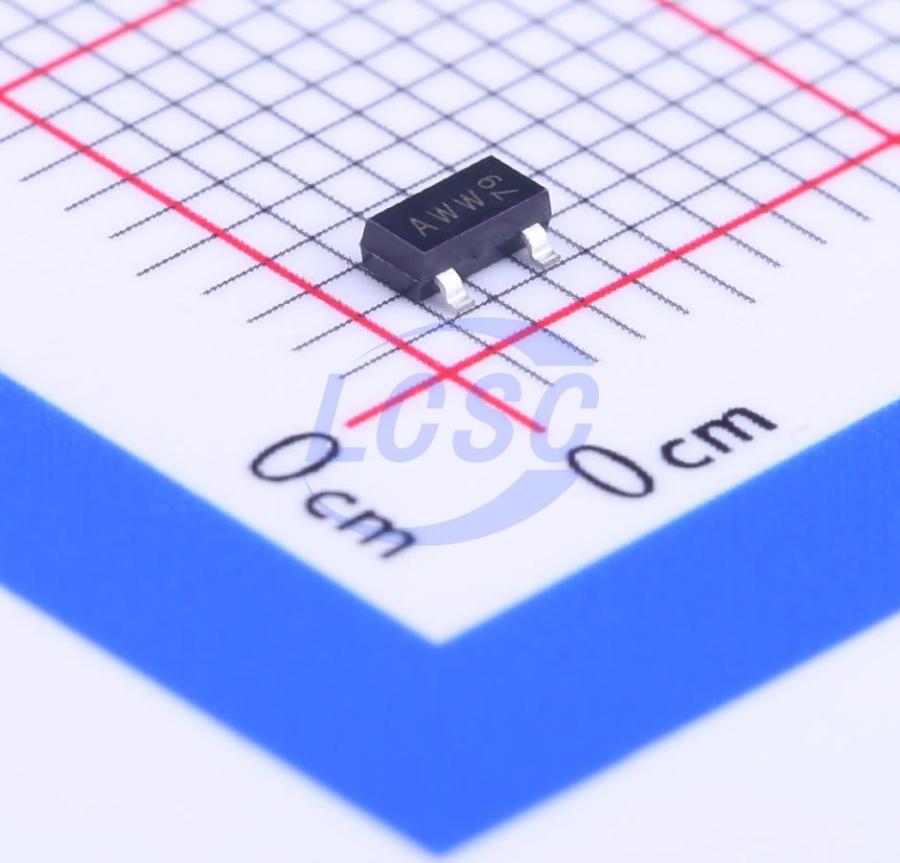

TL431BMFDT,215
2.495V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Adjustable Precision Shunt Regulators
- Manufacturer
- Nexperia
- Manufacturer part #
- TL431BMFDT,215
- Store part #
- C97757
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,604 in stock
#C97757
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.43 | ₹57.43 |
| 10+ | ₹45.03 | ₹450.30 |
| 30+ | ₹39.81 | ₹1,194.30 |
| 100+ | ₹33.08 | ₹3,308.00 |
| 500+ | ₹30.24 | ₹15,120.00 |
| 1,000+ | ₹28.29 | ₹28,290.00 |
1 × ₹57.43
₹57.43
excl. GST
₹67.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BMFDT,215
₹57.43 for 1 + GST
Specifications
- Quiescent Current
- 2uA
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
Three-terminal shunt regulator family with an output voltage range between Vref = 2.495 V and 36 V, to be set by two external resistors.
Applications
- Shunt regulator
- Precision current limiter
- Precision constant current sink
- Isolated feedback loop for Switch Mode Power Supply (SMPS)
Key features
- Programmable output voltage up to 36 V
- Three different reference voltage tolerances: Standard grade: 2 %; A-Grade: 1 %; B-Grade: 0.5 %
- Typical temperature drift: 9mV (in a range of 0 °C up to 70 °C)
- Low output noise
- Typical output impedance: 0.2 Ω
- Sink current capability: 1 mA to 100 mA
- AEC-Q100 qualified (grade 1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR TL431A-UK#C54333728LR · SOT-23 | LR | SOT-23 | 1,280 | ₹6.48 · 1,280 in stock | View |
 | TL431BQDBZR,215#C78611Nexperia · SOT-23 | Nexperia | SOT-23 | 8,010 | ₹16.23 · 8,010 in stock | View |
 | TL431BFDT,215#C97755Nexperia · SOT-23 | Nexperia | SOT-23 | 1,005 | ₹29.48 · 1,005 in stock | View |
 | TL431BSA-7#C97730DIODES · SOT-23 | DIODES | SOT-23 | 4,420 | ₹23.84 · 4,420 in stock | View |
 | TL431BQDBZRQ1#C97747TI · SOT-23-3 | TI | SOT-23-3 | 2,865 | ₹114.90 · 2,865 in stock | View |
