TL431Shunt Voltage Reference IC Adjustable 2.5V~36V ±1% 150mA SOT-23
From
₹8.07
4,90,080 in stock
NexperiaDatasheet (PDF)

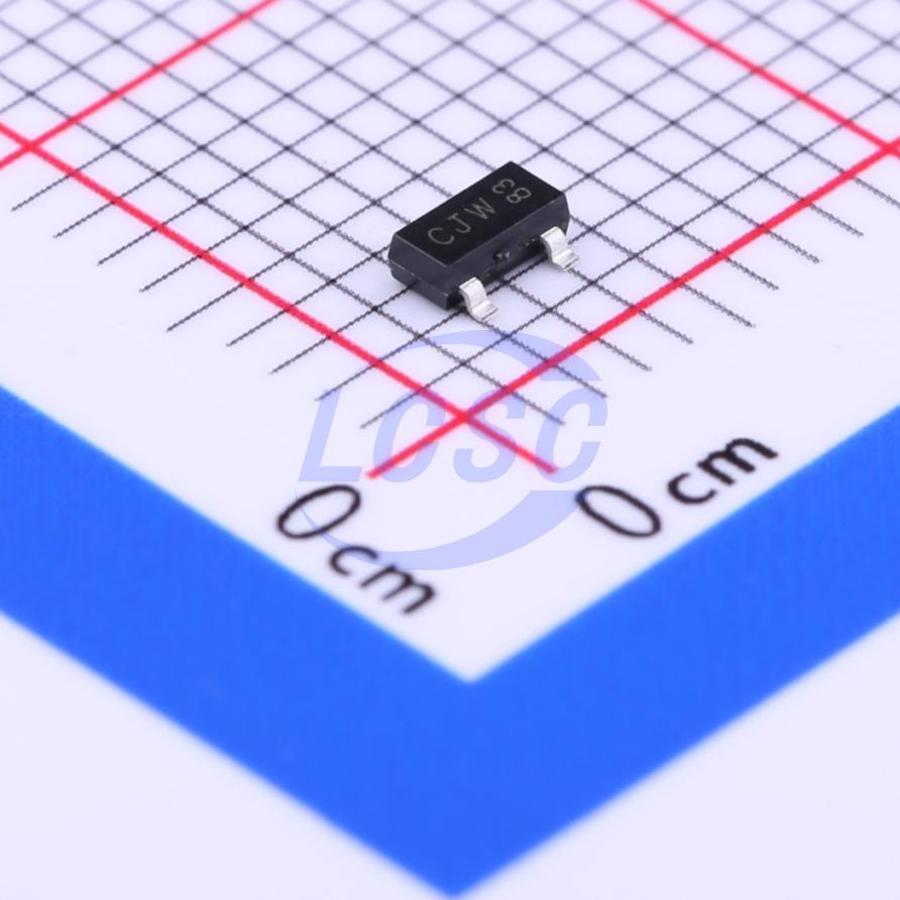

TL431BQDBZR,215
2.495V~36V ±0.5% 2.495V~36V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Adjustable Precision Shunt Regulators
- Manufacturer
- Nexperia
- Manufacturer part #
- TL431BQDBZR,215
- Store part #
- C78611
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,010 in stock
#C78611
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.23 | ₹81.15 |
| 50+ | ₹12.74 | ₹637.00 |
| 150+ | ₹10.99 | ₹1,648.50 |
| 500+ | ₹9.68 | ₹4,840.00 |
| 3,000+ | ₹8.64 | ₹25,920.00 |
| 6,000+ | ₹8.11 | ₹48,660.00 |
5 × ₹16.23
₹81.15
excl. GST
₹95.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL431BQDBZR,215
₹81.15 for 5 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Three-terminal shunt regulator family with an output voltage range between Vref = 2.495 V and 36 V, to be set by two external resistors.
Applications
- Shunt regulator
- Precision current limiter
- Precision constant current sink
- Isolated feedback loop for Switch Mode Power Supply (SMPS)
Key features
- Programmable output voltage up to 36 V
- Three different reference voltage tolerances: Standard grade: 2 %; A-Grade: 1 %; B-Grade: 0.5 %
- Typical temperature drift: 9mV (in a range of 0 °C up to 70 °C)
- Low output noise
- Typical output impedance: 0.2 Ω
- Sink current capability: 1 mA to 100 mA
- AEC-Q100 qualified (grade 1)
