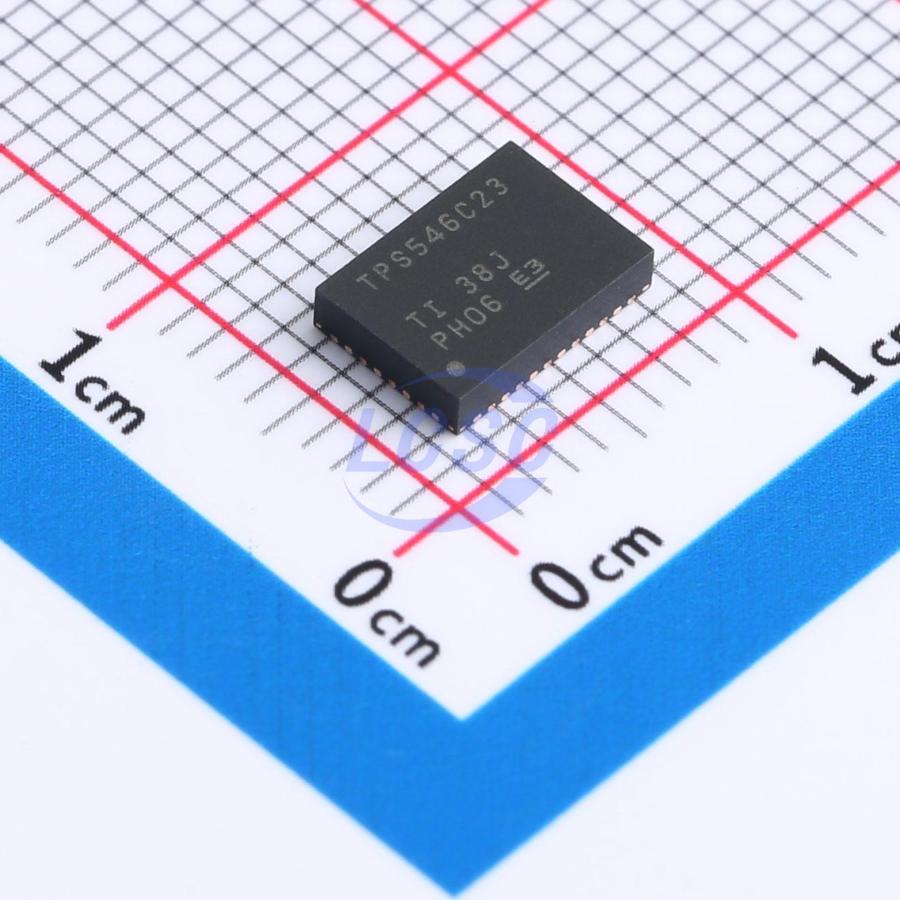

TPS546C23RVFR

The TPS546C23 device is a non-isolated DC-DC converter in a 5mm×7mm package, PMBus 1.3 compliant, with integrated FETs capable of operating at high frequency and delivering 35A output current. Two TPS546C23 devices can be paralleled to provide up to 70A of load current. Current sensing is implemented by sampling a small fraction of the power stage current, independent of device temperature. The integrated NexFET power stage and optimized drivers provide high-frequency, low-loss switching for ultra-high-density power solutions. The PMBus interface enables AVS via VOUT_COMMAND, while supporting flexible converter configuration and monitoring of key parameters including output voltage, current, and internal die temperature. Responses to fault conditions can be configured as restart, latch-off, or ignore, depending on system requirements.

Applications

• Test and measurement instruments
• Ethernet switches, optical switches, routers, base stations
• Servers
• Enterprise-grade storage SSDs
• High-density power solutions

Key features

• PMBus 1.3-compliant converter: two 35A devices stackable up to 70A with current sharing
• Input voltage range: 4.5V to 18V
• Output voltage range: 0.35V to 5.5V
• 5mm × 7mm LQFN package with single exposed pad
• Integrated 3.2mΩ and 1.4mΩ stacked NexFET power stage
• Reference voltage 350mV to 1650mV for adaptive voltage scaling (AVS) and PMBus adjustment
• 0.5% accuracy at output voltage ≥600mV
• Lossless low-side MOSFET current sensing
• Voltage mode control with input feedforward
• Differential remote sensing
• Single start-up to pre-biased output
• Output voltage and output current reporting
• Internal die temperature monitoring
• 64 PMBus addresses programmable via ADDR0 and ADDR1 pins
• VOUT_COMMAND and AVS VOUT slew rate programmable via PMBus interface
• Overcurrent protection with thermal compensation
• UVLO, soft-start, and soft-stop
• Power good (PGOOD), overvoltage (OV), undervoltage (UV), and overtemperature (OT) levels
• Fault response turn-on and turn-off delay
• Thermal shutdown
• Switching frequency via pin configuration: 200kHz to 1MHz
• Synchronization to external clock or output clock frequency sync output
