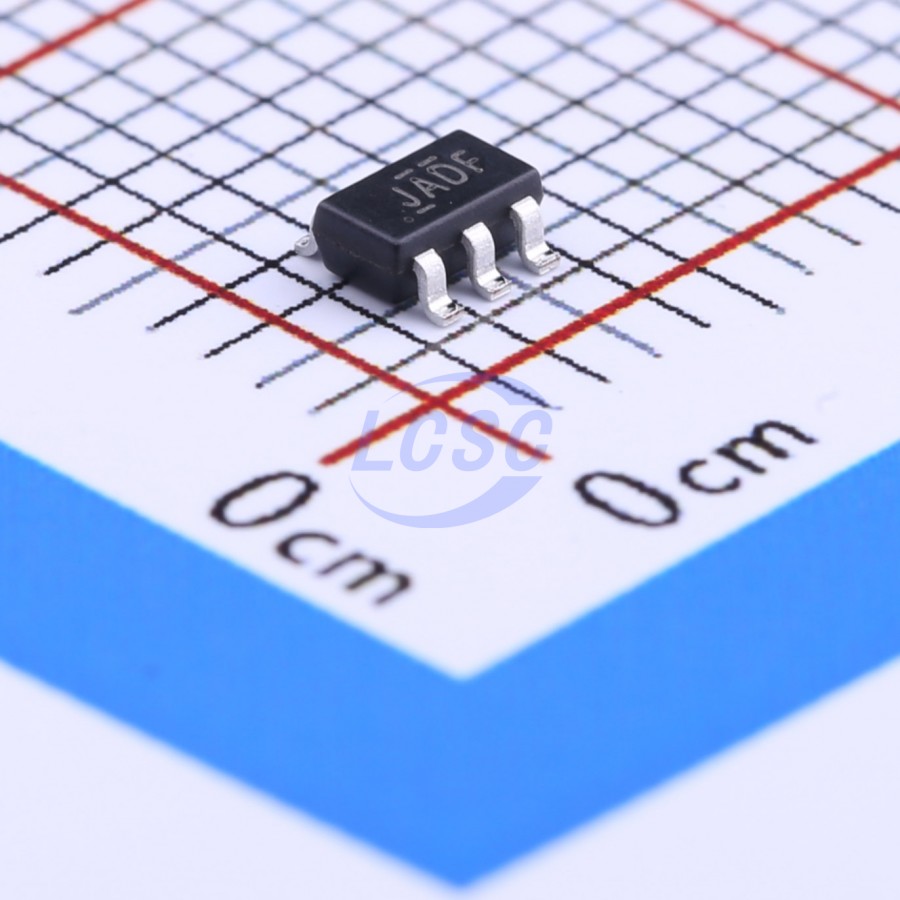

TS5A1066DBVR
10Ω 1 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-5ROHS3 CompliantActive
10-Q SPST ANALOG SWITCH
- Manufacturer
- TI
- Manufacturer part #
- TS5A1066DBVR
- Store part #
- C157480
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C157480
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.33 | ₹156.65 |
| 50+ | ₹25.14 | ₹1,257.00 |
| 150+ | ₹22.12 | ₹3,318.00 |
| 500+ | ₹19.42 | ₹9,710.00 |
| 3,000+ | ₹18.68 | ₹56,040.00 |
| 6,000+ | ₹18.23 | ₹1,09,380.00 |
5 × ₹31.33
₹156.65
excl. GST
₹184.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A1066DBVR
₹156.65 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 10Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 7.5ns
- Con
- 14pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TS5A1066 is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ (peak) can be transmitted in either direction.
Key features
- Low ON-State Resistance (10 Ω)
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LVC1G384GV-Q100H#C548361Nexperia · SC-74A | Nexperia | SC-74A | 250 | ₹53.14 · 250 in stock | View | |
 | SN74LVC1G66DBVR#C133643TI · SOT-23-5 | TI | SOT-23-5 | 31,920 | ₹19.09 · 31,920 in stock | View |
 | SN74LVC1G66DBVT#C2673511TI · SOT-23-5 | TI | SOT-23-5 | 494 | ₹91.14 · 494 in stock | View |
 | SN74LVC1G66DBVR(UMW)#C5375974UMW · SOT-23-5 | UMW | SOT-23-5 | 40,310 | ₹8.12 · 40,310 in stock | View |
 | TS5A3167DBVR#C128416TI · SOT-23-5 | TI | SOT-23-5 | 11,600 | ₹42.16 · 11,600 in stock | View |
