TS5A3167DBVR
900mΩ 1 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-5ROHS3 CompliantActive

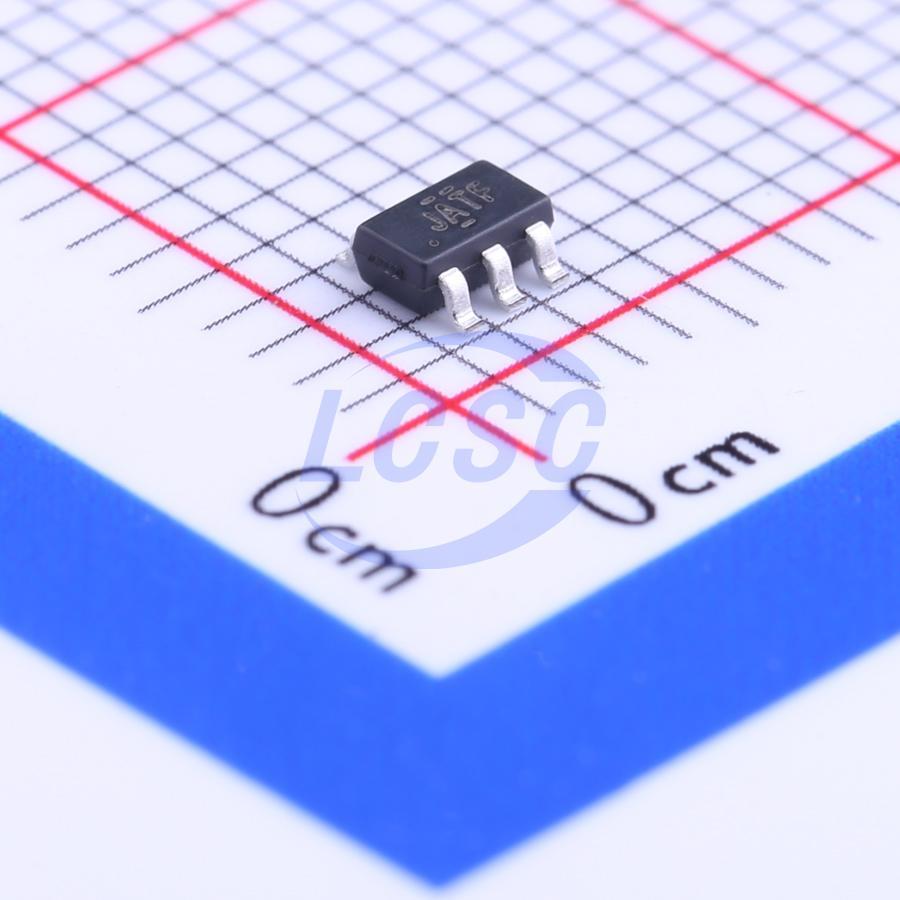

TS5A3167 0.9-Ω 1-channel 1:1 SPST Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3167DBVR
- Store part #
- C128416
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,600 in stock
#C128416
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.16 | ₹210.80 |
| 50+ | ₹33.10 | ₹1,655.00 |
| 150+ | ₹28.68 | ₹4,302.00 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 3,000+ | ₹23.64 | ₹70,920.00 |
| 6,000+ | ₹22.99 | ₹1,37,940.00 |
5 × ₹42.16
₹210.80
excl. GST
₹248.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3167DBVR
₹210.80 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 900mΩ
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 35.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TS5A3167 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A3167 device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Cell Phones
- PDAs Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems Communication Circuits
- Modems Hard Drives
- Computer Peripherals Wireless Terminals and Peripherals
- Microphone Switching – Notebook Docking
Key features
- Isolation in Powered-Off Mode, VCC = 0
- Low ON-State Resistance (0.9 Ω)
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS5A3166DBVR#C353035TI · SOT-23-5 | TI | SOT-23-5 | 11,475 | ₹50.31 · 11,475 in stock | View |
 | 74LVC1G66GV,125#C12514Nexperia · SC-74A | Nexperia | SC-74A | 105 | ₹28.66 · 105 in stock | View |
 | 74LVC1G66GV-Q100,1#C548406Nexperia · SC-74A | Nexperia | SC-74A | 100 | ₹25.19 · 100 in stock | View |
 | SN74LVC1G66DBVR#C133643TI · SOT-23-5 | TI | SOT-23-5 | 31,920 | ₹19.09 · 31,920 in stock | View |
 | TS5A1066DBVR#C157480TI · SOT-23-5 | TI | SOT-23-5 | 2,485 | ₹31.33 · 2,485 in stock | View |
