TS5A3160DCKR
1.1Ω 1 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6ROHS3 CompliantActive

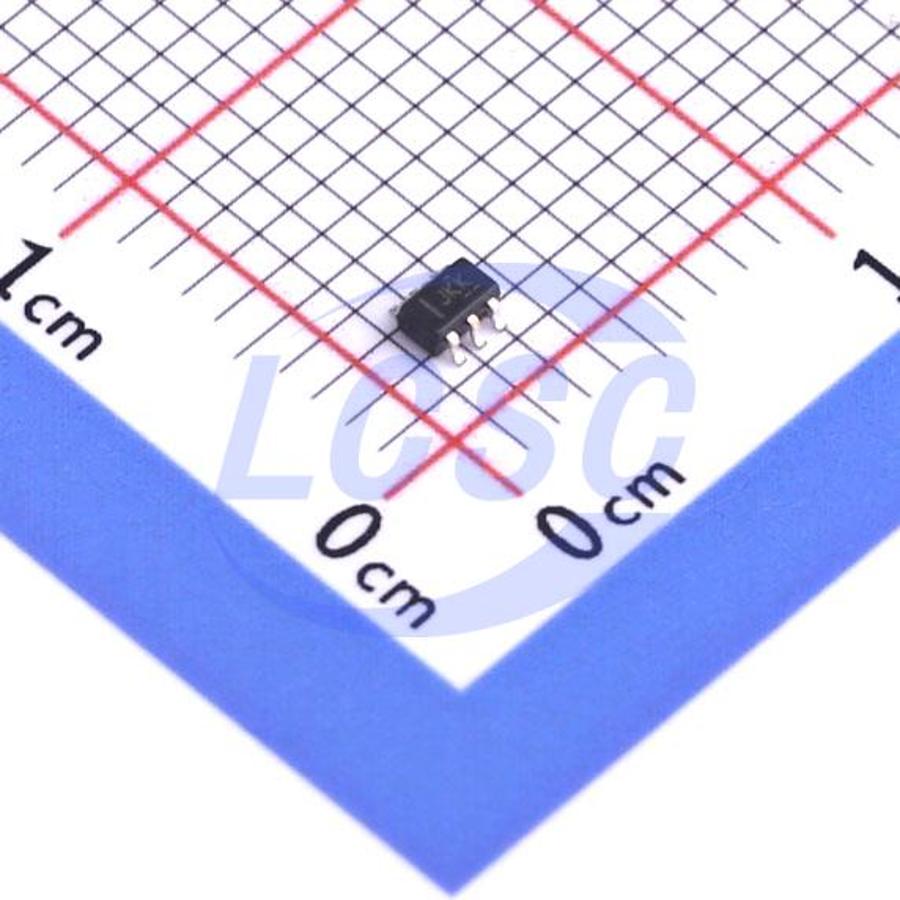

TS5A3160 1-Q SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3160DCKR
- Store part #
- C2651901
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,272 in stock
#C2651901
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.36 | ₹69.36 |
| 10+ | ₹56.11 | ₹561.10 |
| 30+ | ₹50.45 | ₹1,513.50 |
| 100+ | ₹43.49 | ₹4,349.00 |
| 500+ | ₹40.23 | ₹20,115.00 |
| 1,000+ | ₹38.49 | ₹38,490.00 |
1 × ₹69.36
₹69.36
excl. GST
₹81.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3160DCKR
₹69.36 for 1 + GST
Specifications
- Features
- Power-off isolation;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 1.1Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 55pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
The TS5A3160 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ONstate resistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Mobile Phones
- Consumer and Computing
- Portable Instrumentation
Key features
- Low ON-State Resistance (1 Ω)
- Isolation in the Powered-Off Mode, V₊ = 0
- Specified Make-Before-Break Switching
- Control Inputs are 5-V Tolerant
- Low Charge Injection
- Excellent ON-Resistance Matching
- Low Total Harmonic Distortion
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22: 2000-V Human Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
