TS5A3166DCKR
900mΩ 1 1.65V~5.5V SC-70-5 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-5ROHS3 CompliantActive

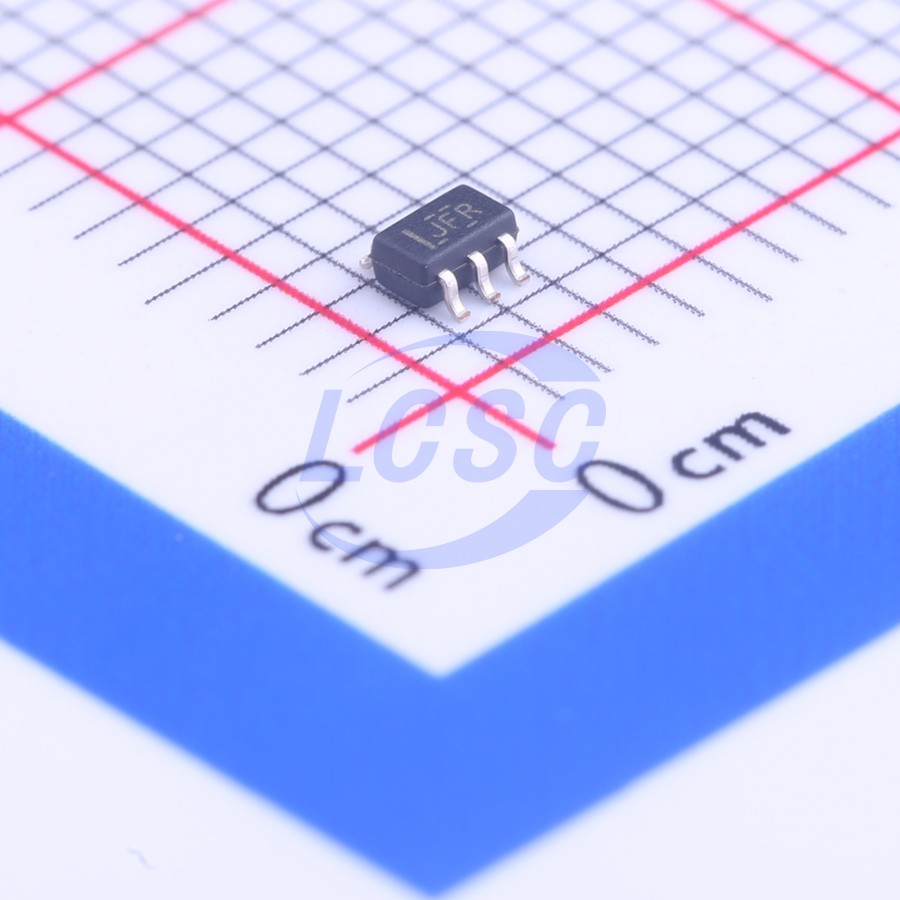

TS5A3166 0.9-Ω SPST Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3166DCKR
- Store part #
- C133819
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C133819
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹62.58 | ₹312.90 |
| 50+ | ₹52.15 | ₹2,607.50 |
| 150+ | ₹47.69 | ₹7,153.50 |
| 500+ | ₹42.12 | ₹21,060.00 |
| 3,000+ | ₹37.26 | ₹1,11,780.00 |
| 6,000+ | ₹35.77 | ₹2,14,620.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 900mΩ
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 35.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TS5A3166 device is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ONstate resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Cell Phones
- PDAs
- Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems
- Communication Circuits
- Modems
- Hard Drives
- Computer Peripherals
- Wireless Terminals and Peripherals
- Microphone Switching – Notebook Docking
Key features
- Low ON-State Resistance (0.9 Ω)
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG1066C5#C48543252TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 900 | ₹31.59 · 900 in stock | View |
 | TS5A3167DCKR#C130087TI · SC-70-5 | TI | SC-70-5 | 11,555 | ₹49.82 · 11,555 in stock | View |
 | PI5A3167CCEX#C2673940DIODES · SC-70-5 | DIODES | SC-70-5 | 90 | ₹41.20 · 90 in stock | View |
 | SN74LVC1G66DCKR#C113518TI · SC-70-5 | TI | SC-70-5 | 47,150 | ₹21.59 · 47,150 in stock | View |
 | SN74LVC1G66DCKR(UMW)#C7394042UMW · SC70-5 | UMW | SC70-5 | 6,510 | ₹5.97 · 6,510 in stock | View |
