TS5A63157DCKR
12Ω 1 1.65V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6ROHS CompliantActive

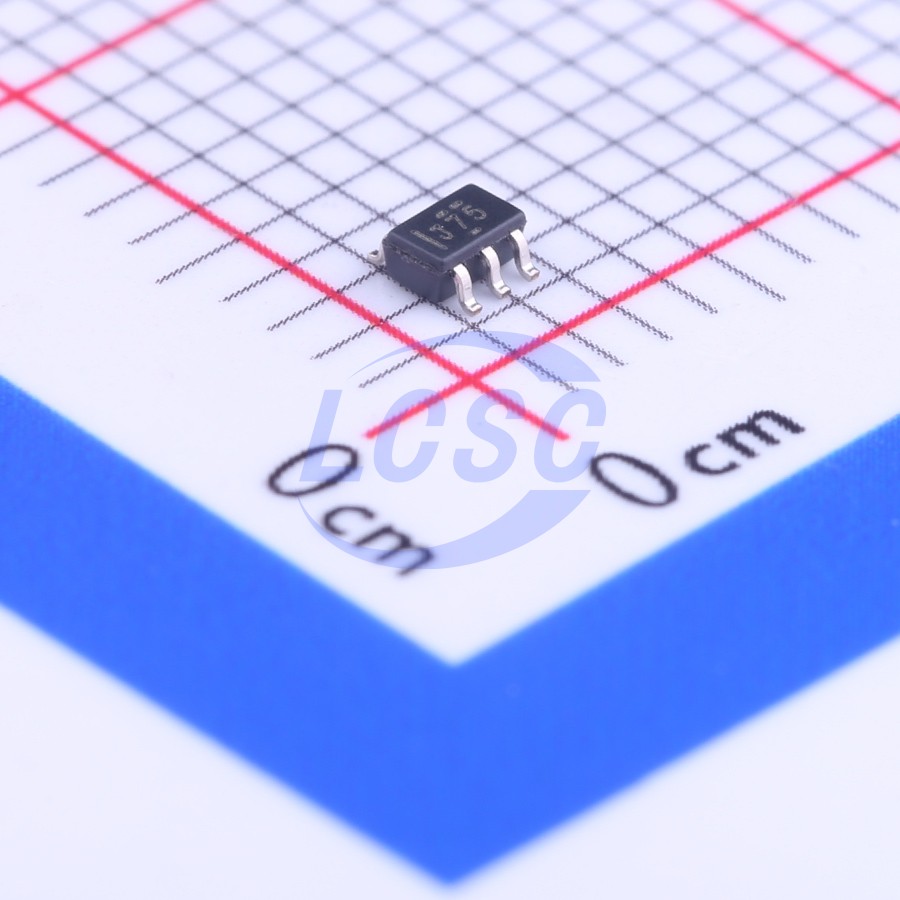

TS5A63157 Single-Channel 2:1 Multiplexer/Demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TS5A63157DCKR
- Store part #
- C133575
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,225 in stock
#C133575
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.27 | ₹171.35 |
| 50+ | ₹29.48 | ₹1,474.00 |
| 150+ | ₹27.41 | ₹4,111.50 |
| 500+ | ₹24.86 | ₹12,430.00 |
| 3,000+ | ₹23.71 | ₹71,130.00 |
| 6,000+ | ₹23.03 | ₹1,38,180.00 |
5 × ₹34.27
₹171.35
excl. GST
₹202.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A63157DCKR
₹171.35 for 5 + GST
Specifications
- Features
- Fault protection;Power-off isolation;Glitch-free switching;Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 12Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.071 g
Overview
The TS5A63157 is a single-pole, double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to V+ (peak) can be transmitted in either direction. TI has integrated overshoot and undershoot protection circuitry. The TS5A63157 senses overshoot and undershoot events at the I/Os and responds by preventing voltage differentials from developing and turning the switch on.
Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
Key features
- Overshoot and Undershoot Voltage Protection
- Isolation in Powered-Off Mode, V+ = 0
- Specified Break-Before-Make Switching
- Low ON-State Resistance (12 Ω)
- Control Inputs Are 5-V Tolerant
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 – 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
