UTCDatasheet (PDF)

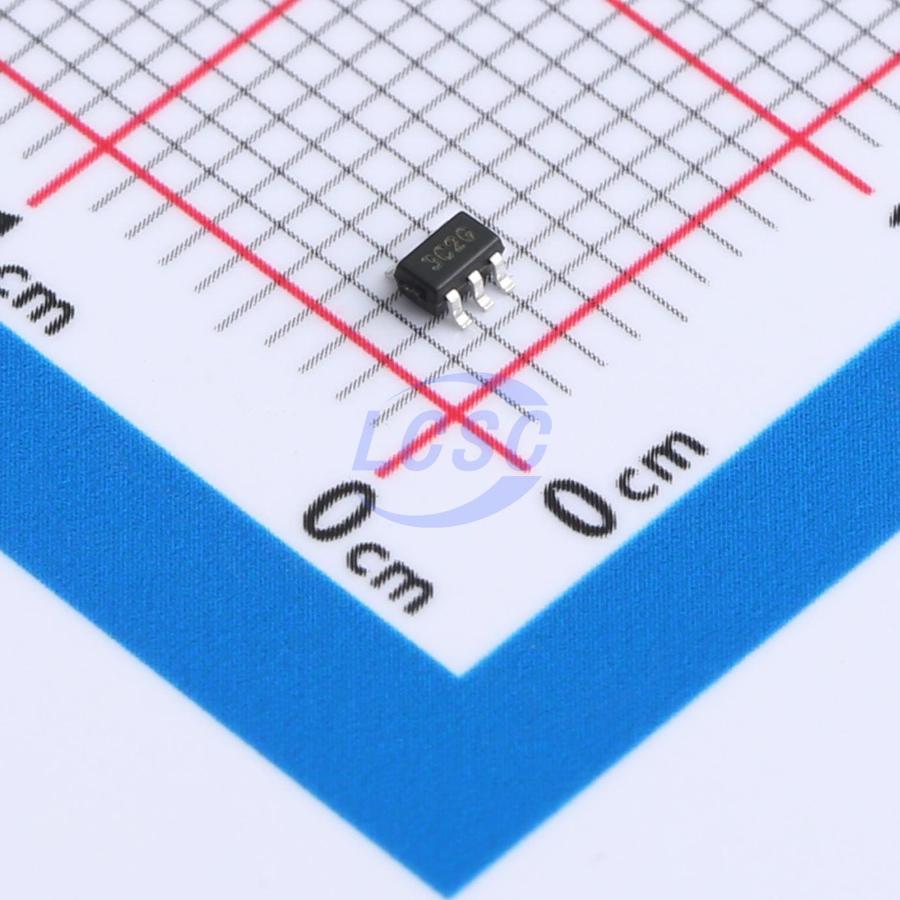

U74LVC1G32G
1.6V~5.5V 8ns@5V,50pF 10uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC1G32G
- Store part #
- C7494901
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,180 in stock
#C7494901
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.56 | ₹65.60 |
| 100+ | ₹5.23 | ₹523.00 |
| 300+ | ₹4.55 | ₹1,365.00 |
| 3,000+ | ₹4.06 | ₹12,180.00 |
| 6,000+ | ₹3.65 | ₹21,900.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹6.56
₹65.60
excl. GST
₹77.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC1G32G
₹65.60 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.6V~5.5V
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Propagation Delay
- 8ns@5V,50pF
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.116 g
Overview
The U74LVC1G32 is a single 2 - input OR gate which provides the Function Y = A + B in positive logic circuit. This device has power - down protective circuit to prevent the device from destruction when it is powered down.
Key features
- Operation Voltage Range: 1.6V ~ 5.5V
- Low Power Current: lCC = 10μA (Max.)
- ±24mA Output Drive (VCC = 3.0V)
- Power Down Protection
