VISHAYDatasheet (PDF)

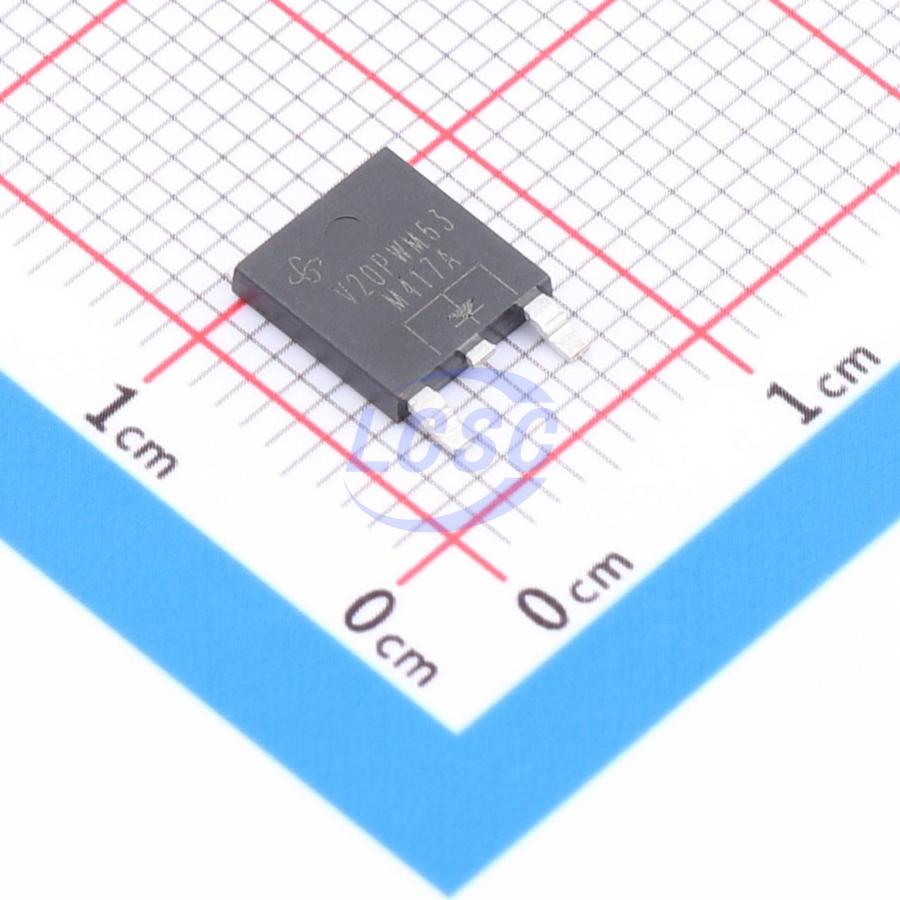

V20PWM63-M3/I
1 Independent 60V 670mV@20A 20A TO-252-3 Single Diodes RoHS
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 60V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V20PWM63-M3/I
- Store part #
- C7139548
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C7139548
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹298.12 | ₹298.12 |
| 10+ | ₹294.26 | ₹2,942.60 |
| 30+ | ₹291.68 | ₹8,750.40 |
| 100+ | ₹288.88 | ₹28,888.00 |
1 × ₹298.12
₹298.12
excl. GST
₹351.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V20PWM63-M3/I
₹298.12 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 670mV@20A
- Reverse Leakage Current (Ir)
- 35uA@60V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.609 g
Overview
High current density surface mount TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low VF of 0.39V at IF = 5A. Part of the eSMP series in SlimDPAK (TO-252AE) package.
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-low profile, typical height 1.3mm
- Trench MOS Schottky technology
- Optimized for automated pick-and-place assembly
- Low forward voltage drop, reduced power loss, high operating efficiency
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive order code: NHM3 for base part number
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V20PWM10HM3/I#C7139542VISHAY · TO-252-3 | VISHAY | TO-252-3 | 9 | ₹173.41 · 9 in stock | View |
 | V35PWL63-M3/I#C6310276VISHAY · TO-252-3 | VISHAY | TO-252-3 | 27 | ₹540.56 · 27 in stock | View |
 | V35PW60-M3/I#C7377343VISHAY · TO-252-3 | VISHAY | TO-252-3 | 48 | ₹221.22 · 48 in stock | View |
 | V20PWM12HM3/I#C7095859VISHAY · TO-252-3 | VISHAY | TO-252-3 | 30 | ₹125.33 · 30 in stock | View |
 | V35PWM60HM3/I#C6908453VISHAY · TO-252-3 | VISHAY | TO-252-3 | 20 | ₹152.77 · 20 in stock | View |
