VISHAYDatasheet (PDF)

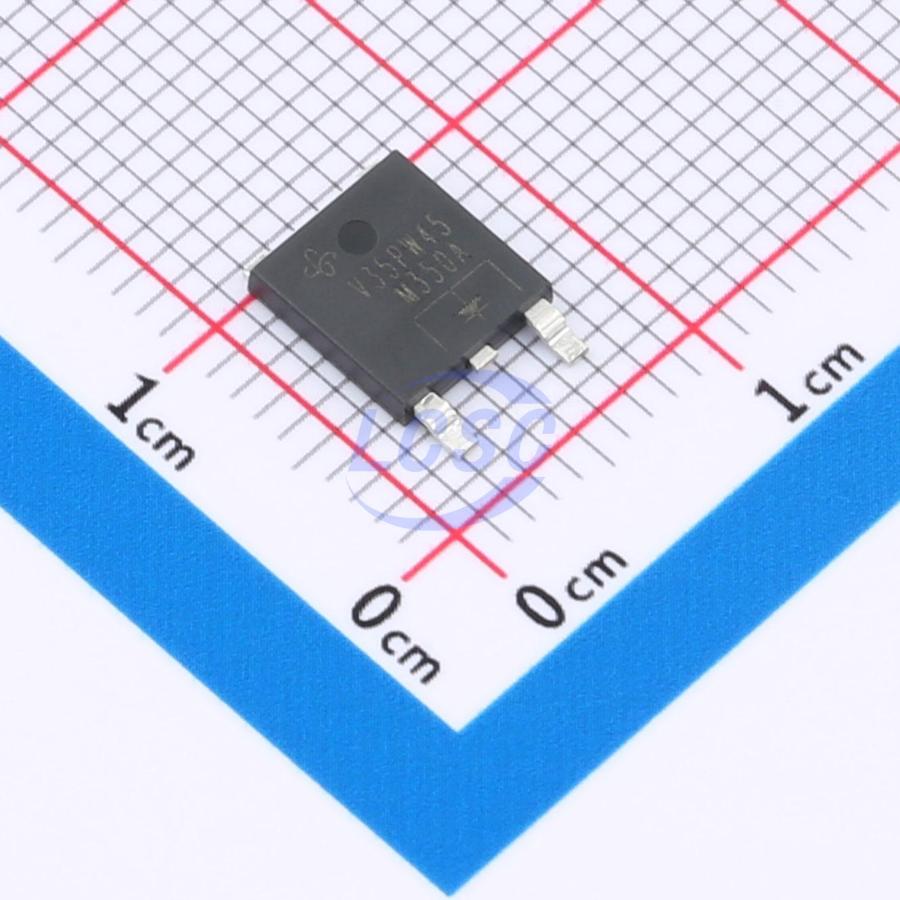

V35PW45-M3/I
1 Independent 45V 620mV@35A 35A TO-252-3 Single Diodes RoHS
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 45V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PW45-M3/I
- Store part #
- C6908451
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C6908451
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹160.37 | ₹160.37 |
| 10+ | ₹157.33 | ₹1,573.30 |
| 30+ | ₹155.16 | ₹4,654.80 |
| 100+ | ₹130.61 | ₹13,061.00 |
1 × ₹160.37
₹160.37
excl. GST
₹189.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PW45-M3/I
₹160.37 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 620mV@35A
- Reverse Leakage Current (Ir)
- 2.5mA@45V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-thin profile — typical height 1.3mm
- Trench MOS Schottky technology
- Ideal for automated placement
- Low forward voltage drop, low power loss, high operating efficiency
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive grade ordering code: base part number NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V35PW45HM3/I#C7140637VISHAY · TO-252-3 | VISHAY | TO-252-3 | 500 | ₹319.81 · 500 in stock | View |
 | V35PWL63-M3/I#C6310276VISHAY · TO-252-3 | VISHAY | TO-252-3 | 27 | ₹540.56 · 27 in stock | View |
 | V35PW60-M3/I#C7377343VISHAY · TO-252-3 | VISHAY | TO-252-3 | 48 | ₹221.22 · 48 in stock | View |
 | V35PWM60HM3/I#C6908453VISHAY · TO-252-3 | VISHAY | TO-252-3 | 20 | ₹152.77 · 20 in stock | View |
 | V35PWM60-M3/I#C7140641VISHAY · TO-252-3 | VISHAY | TO-252-3 | 20 | ₹228.06 · 20 in stock | View |
