VBsemi ElecDatasheet (PDF)

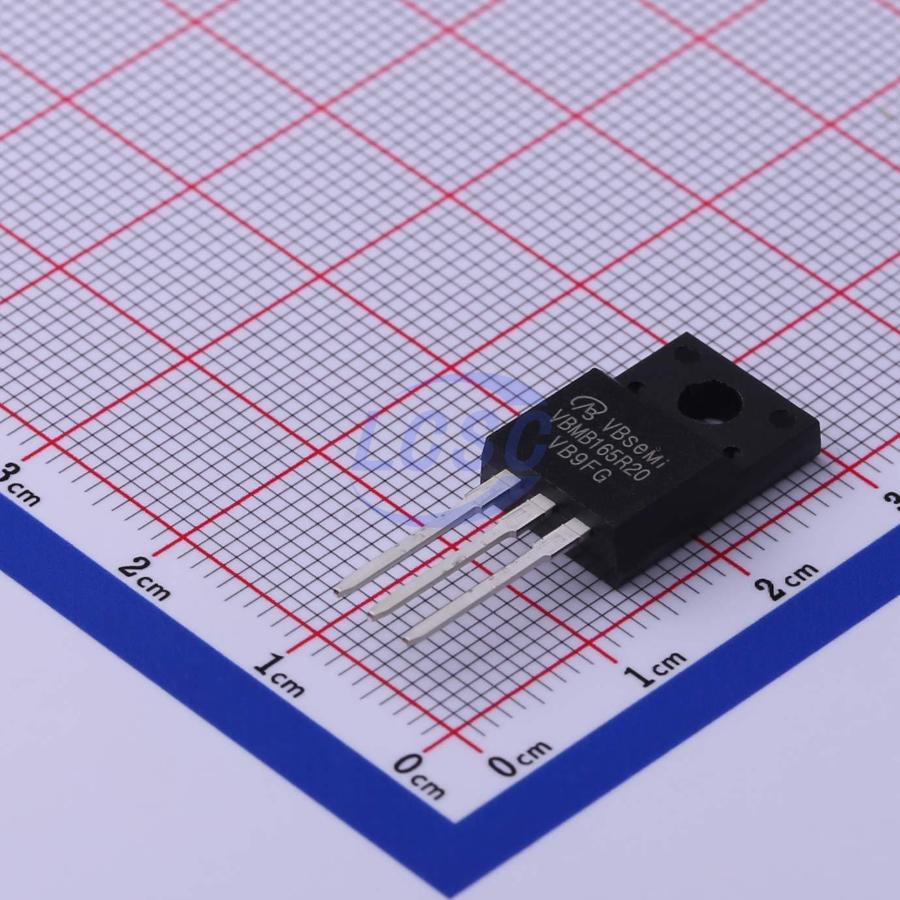

VBMB165R20
N-Channel 650V 13A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 13A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB165R20
- Store part #
- C481039
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C481039
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.91 | ₹192.91 |
| 10+ | ₹160.86 | ₹1,608.60 |
| 50+ | ₹143.27 | ₹7,163.50 |
| 100+ | ₹123.37 | ₹12,337.00 |
| 500+ | ₹114.57 | ₹57,285.00 |
| 1,000+ | ₹110.59 | ₹1,10,590.00 |
1 × ₹192.91
₹192.91
excl. GST
₹227.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB165R20
₹192.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 118pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.414nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 109nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.77 g
Overview
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TK12A60U-VB#C20755434VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 13 | ₹185.27 · 13 in stock | View |
 | TSF12N60S-VB#C29779058VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹185.27 · 10 in stock | View |
 | STF15NM60ND-VB#C29779207VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹185.27 · 5 in stock | View |
 | STF15N65M5-VB#C29779357VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 8 | ₹185.27 · 8 in stock | View |
 | VBZMB20N65#C700735VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 39 | ₹183.84 · 39 in stock | View |
