VBsemi ElecDatasheet (PDF)

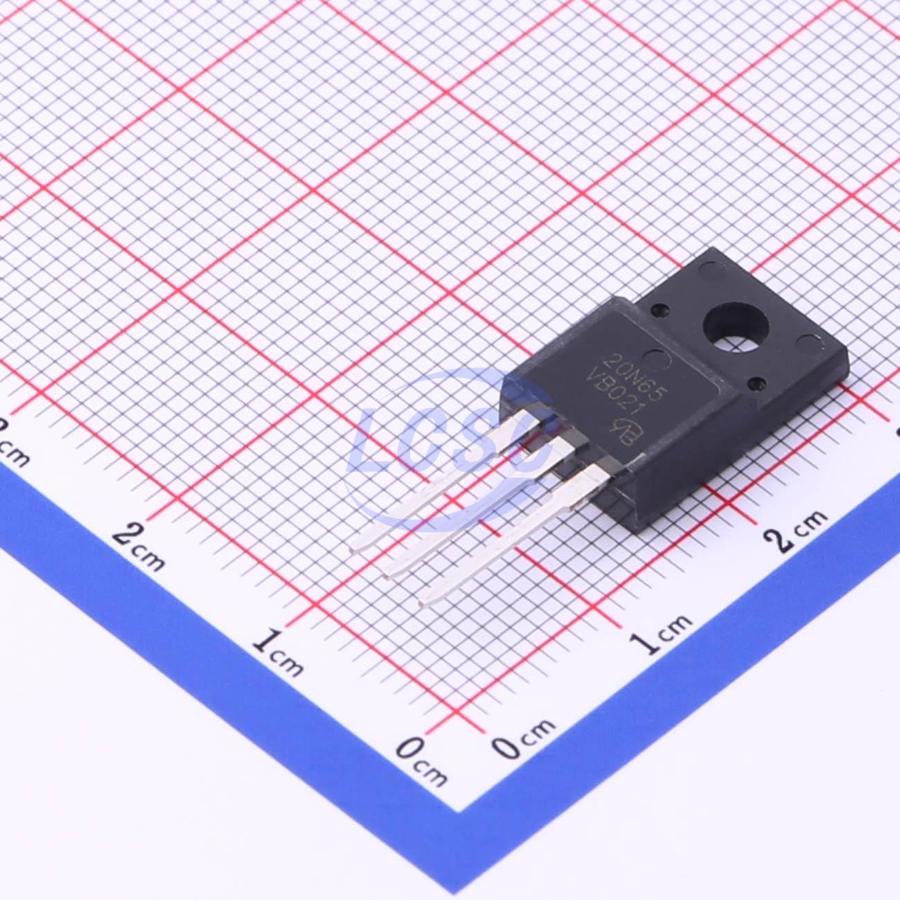

VBZMB20N65
N-Channel 650V 13A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 13A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZMB20N65
- Store part #
- C700735
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C700735
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹183.84 | ₹183.84 |
| 10+ | ₹153.30 | ₹1,533.00 |
| 50+ | ₹122.17 | ₹6,108.50 |
| 100+ | ₹103.41 | ₹10,341.00 |
| 500+ | ₹94.82 | ₹47,410.00 |
| 1,000+ | ₹91.22 | ₹91,220.00 |
1 × ₹183.84
₹183.84
excl. GST
₹216.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZMB20N65
₹183.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 118pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.414nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 170mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.85 g
Overview
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
