VBsemi ElecDatasheet (PDF)

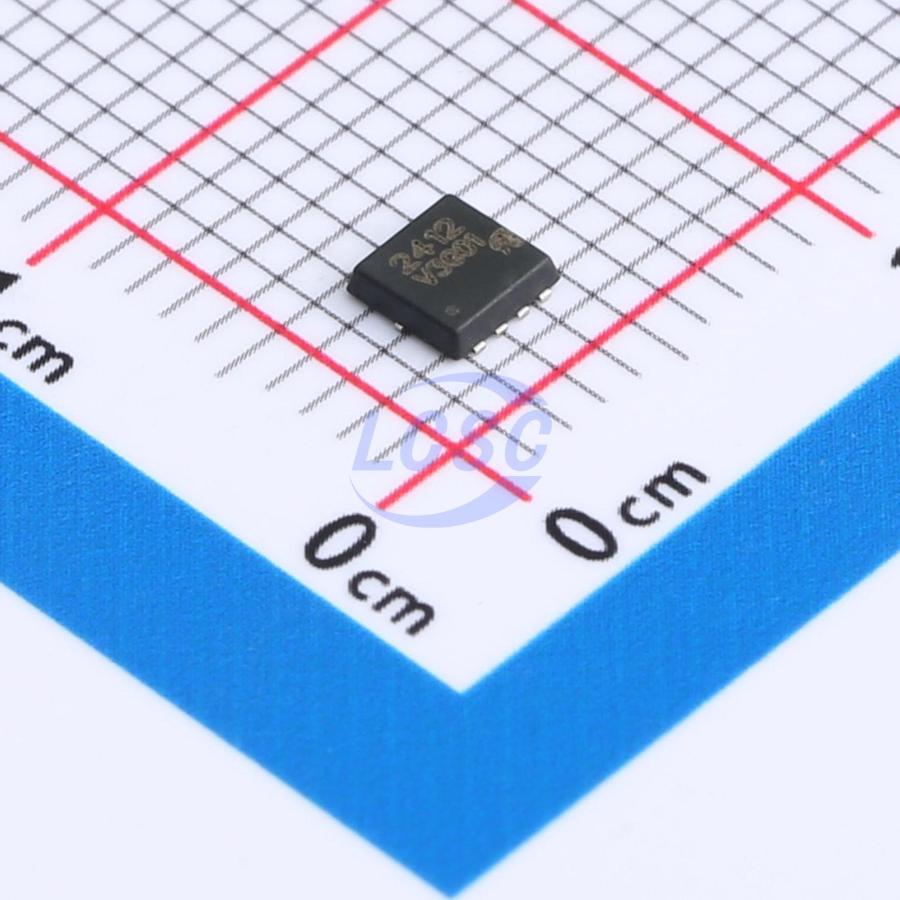

VBQF2412
P-Channel 40V 33.1A 48W Surface Mount DFN-8(3x3)
DFN-8(3x3)ROHS CompliantActive
MOSFET P-CH 40V 33.1A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQF2412
- Store part #
- C7569076
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C7569076
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.69 | ₹148.69 |
| 10+ | ₹126.49 | ₹1,264.90 |
| 30+ | ₹115.38 | ₹3,461.40 |
| 100+ | ₹104.28 | ₹10,428.00 |
| 500+ | ₹67.71 | ₹33,855.00 |
| 1,000+ | ₹64.23 | ₹64,230.00 |
1 × ₹148.69
₹148.69
excl. GST
₹175.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
VBQF2412
₹148.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 615pF
- Current - Continuous Drain(Id)
- 33.1A
- Ciss-Input Capacitance
- 5.125nF
- Pd - Power Dissipation
- 48W
- Reverse Transfer Capacitance (Crss)
- 554pF
- RDS(on)
- 12mΩ@10V;13mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 90nC@10V;43.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
Applications
- Battery, load, and adapter switching
- Notebook computers
- Notebook computer battery packs
Key features
- Trench power MOSFET
- Low on-resistance for low voltage drop
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
