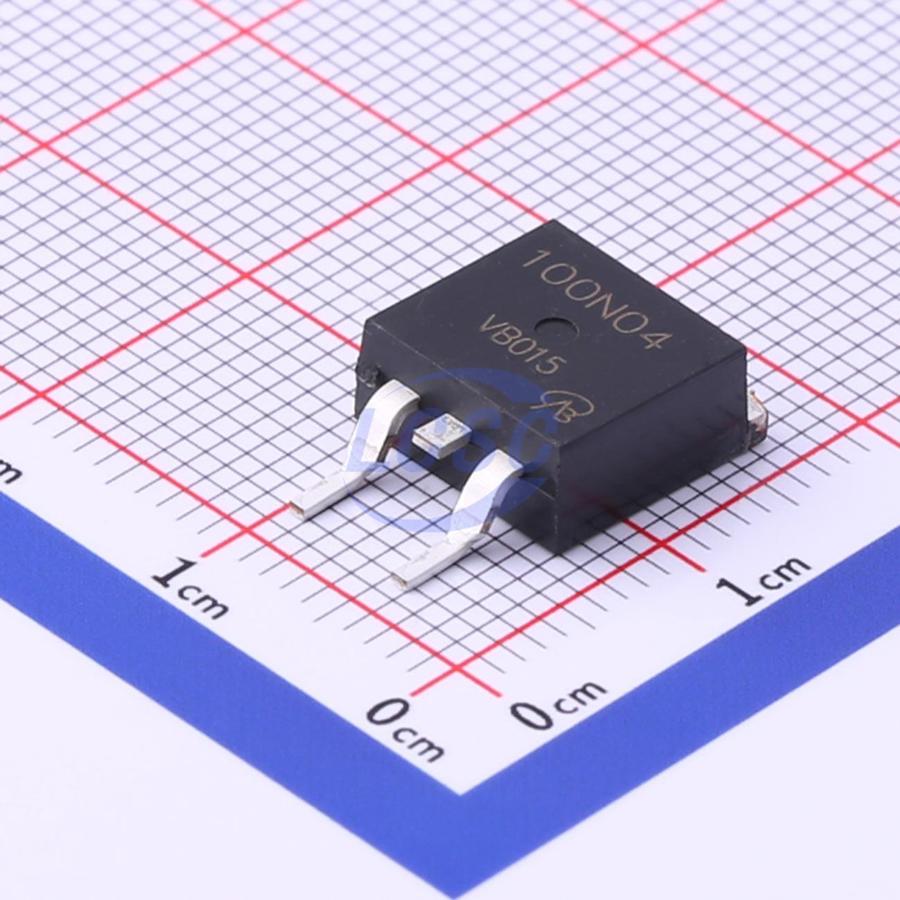

VBZL100N04
N-Channel 40V 110A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 110A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZL100N04
- Store part #
- C700685
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C700685
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.03 | ₹107.03 |
| 10+ | ₹86.92 | ₹869.20 |
| 50+ | ₹77.08 | ₹3,854.00 |
| 100+ | ₹67.02 | ₹6,702.00 |
| 500+ | ₹61.16 | ₹30,580.00 |
| 1,000+ | ₹58.03 | ₹58,030.00 |
1 × ₹107.03
₹107.03
excl. GST
₹126.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZL100N04
₹107.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 5mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.17 g
Overview
Key features
- ThunderFET power MOSFET
- Maximum 175 °C junction temperature
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZL80N04#C700695VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 28 | ₹101.80 · 28 in stock | View |
 | VBL1615A#C967512VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹126.88 · 20 in stock | View |
 | IRL1004SPBF-VB#C19626842VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹125.82 · 5 in stock | View |
 | SUM70N04-07L-E3-VB#C19632250VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹107.14 · 20 in stock | View |
 | STB100NF04-VB#C725202VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 15 | ₹100.60 · 15 in stock | View |
