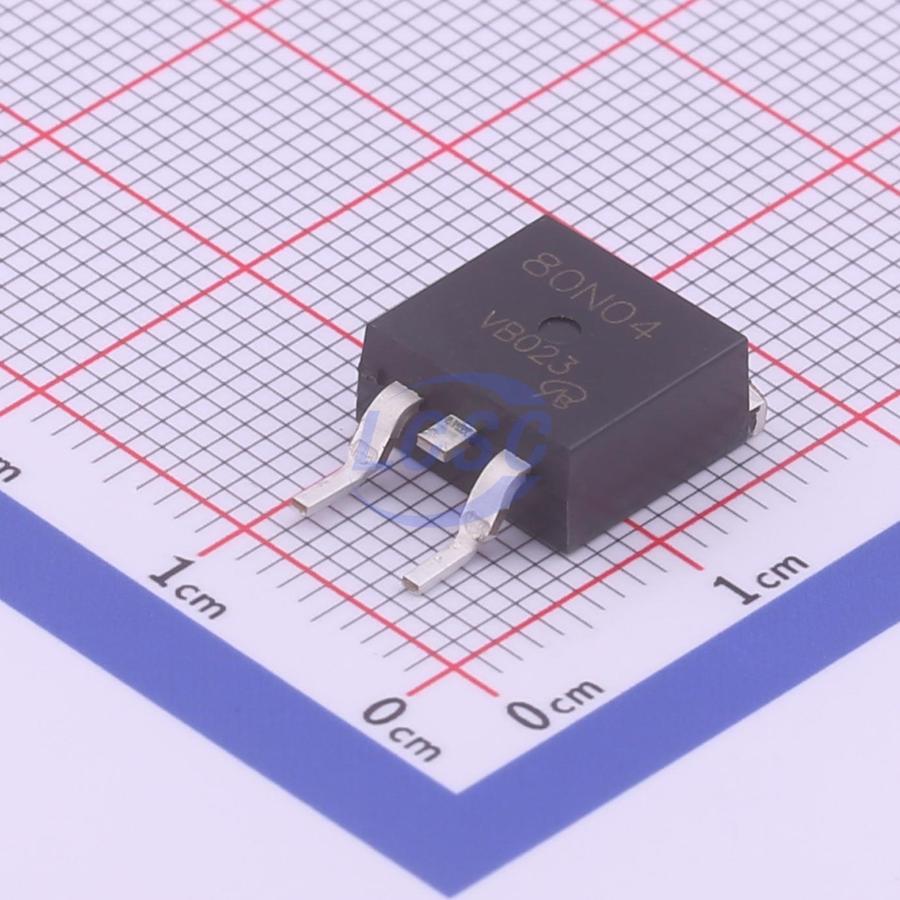

VBZL80N04
N-Channel 40V 110A 150W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 110A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZL80N04
- Store part #
- C700695
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28 in stock
#C700695
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.80 | ₹101.80 |
| 10+ | ₹82.85 | ₹828.50 |
| 50+ | ₹67.27 | ₹3,363.50 |
| 100+ | ₹57.89 | ₹5,789.00 |
| 500+ | ₹52.10 | ₹26,050.00 |
| 1,000+ | ₹49.31 | ₹49,310.00 |
1 × ₹101.80
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZL80N04
₹101.80 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.1nF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 3.5nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 5mΩ@10V;6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.18 g
Overview
Key features
- ThunderFET power MOSFET
- Maximum 175 °C junction temperature
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBZL100N04#C700685VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 34 | ₹107.03 · 34 in stock | View |
 | IPB80N04S2-H4-VB#C7494458VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 49 | ₹118.65 · 49 in stock | View |
 | VBGL1102#C21264522VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 12 | ₹471.97 · 12 in stock | View |
 | IPB020N10N5LF-VB#C21264523VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹413.74 · 5 in stock | View |
 | IPB020N10N5-VB#C21264524VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 31 | ₹473.49 · 31 in stock | View |
