YezhanDatasheet (PDF)
YLRY12-2-1F

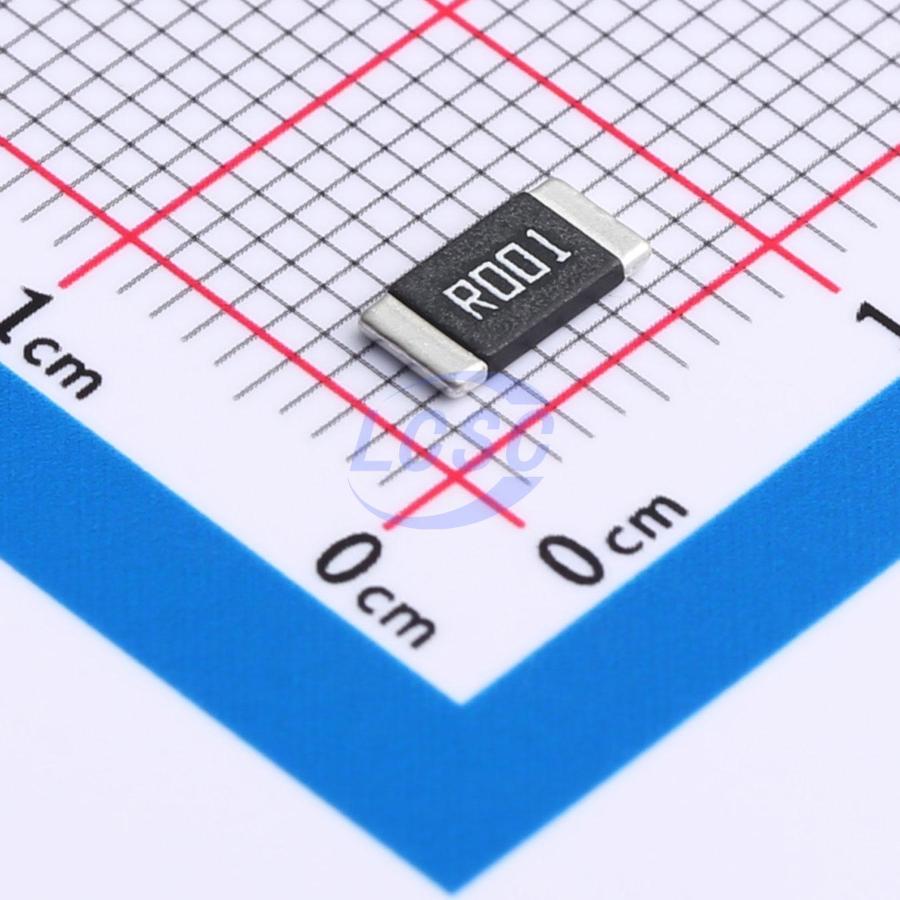

1mΩ 2W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 1mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-1F
- Store part #
- C20608730
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,035 in stock
#C20608730
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.56 | ₹428.00 |
| 150+ | ₹7.42 | ₹1,113.00 |
| 500+ | ₹6.58 | ₹3,290.00 |
| 2,500+ | ₹5.89 | ₹14,725.00 |
| 4,000+ | ₹5.56 | ₹22,240.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-1F
₹54.10 for 5 + GST
Specifications
- Resistance
- 1mΩ
- Power(Watts)
- 2W
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YLRY12-2-1F-K#C20608731Yezhan · 2512 | Yezhan | 2512 | 63,230 | ₹6.73 · 63,230 in stock | View |
 | YLR12-2-1F-W#C469371Yezhan · 2512 | Yezhan | 2512 | 45,400 | ₹13.27 · 45,400 in stock | View |
 | YLRY12-3-1F#C20608759Yezhan · 2512 | Yezhan | 2512 | 3,395 | ₹10.69 · 3,395 in stock | View |
 | YLRY12-3-1F-K#C20608760Yezhan · 2512 | Yezhan | 2512 | 52,570 | ₹7.29 · 52,570 in stock | View |
 | YLR12-3-1F-W#C489551Yezhan · 2512 | Yezhan | 2512 | 23,865 | ₹15.15 · 23,865 in stock | View |
