YezhanDatasheet (PDF)

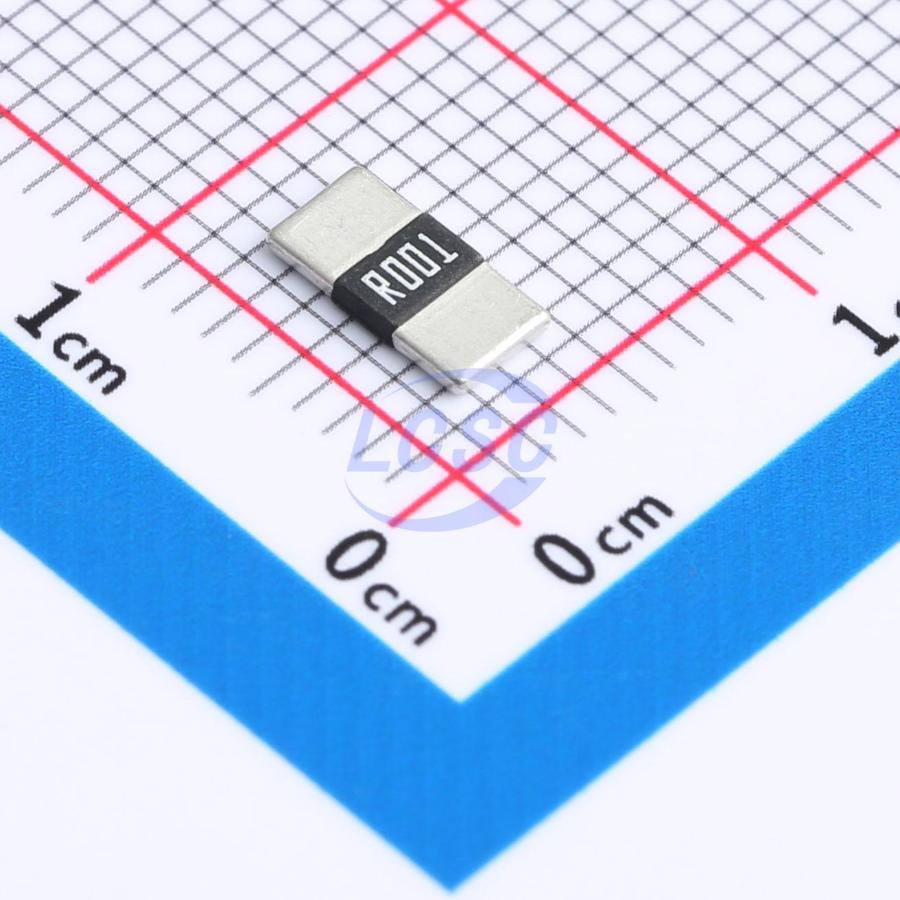

YLRY12-2-1F-K
1mΩ 2W Current Sense Resistor ±1% 2512 Chip Resistor - Surface Mount
2512RoHSActive
RES 1mΩ ±1% 2W 2512
- Manufacturer
- Yezhan
- Manufacturer part #
- YLRY12-2-1F-K
- Store part #
- C20608731
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63,230 in stock
#C20608731
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.73 | ₹67.30 |
| 100+ | ₹5.32 | ₹532.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 1,000+ | ₹4.09 | ₹4,090.00 |
| 4,000+ | ₹3.66 | ₹14,640.00 |
| 8,000+ | ₹3.45 | ₹27,600.00 |
10 × ₹6.73
₹67.30
excl. GST
₹79.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
YLRY12-2-1F-K
₹67.30 for 10 + GST
Specifications
- Resistance
- 1mΩ
- Power(Watts)
- 2W
- Type
- Current Sense Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.115 g
Overview
Applications
- Current sensing
- Overcurrent protection
- Servo motor control circuits
- Variable frequency power supplies
- Electronic control systems
- Lithium battery control boards
Key features
- Resistance range: 0.5~500mΩ
- Tolerance: ±1%, ±2%, ±5%
- Power rating: 1W, 2W, 3W
- Temperature coefficient: ±350ppm/℃, ±100ppm/℃, ±50ppm/℃
- Operating temperature range: -55℃~170℃
- Low inductance: 5nH (1MHz)
- Insulation resistance: ≥100MΩ
- Withstanding voltage: 500V
- RoHS compliant
