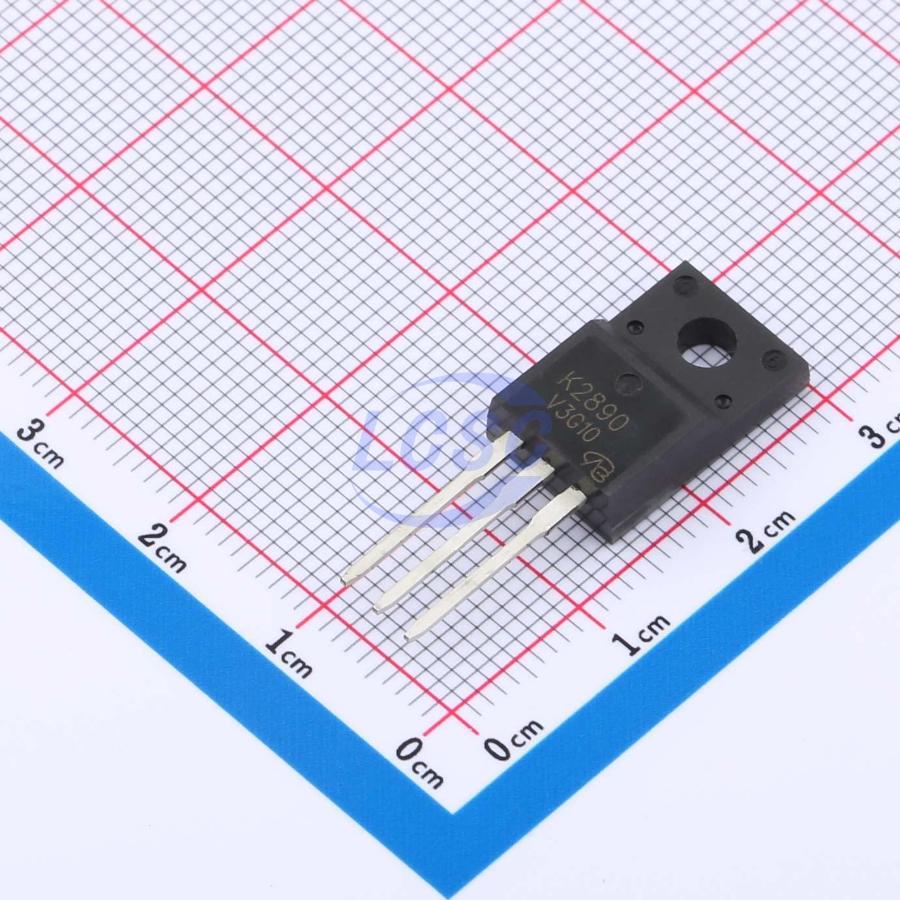

2SK2890-01MR-VB
N-Channel 30V 140A 250W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 30V 140A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK2890-01MR-VB
- Store part #
- C20417477
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C20417477
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.99 | ₹99.99 |
| 10+ | ₹81.30 | ₹813.00 |
| 50+ | ₹71.84 | ₹3,592.00 |
| 100+ | ₹62.60 | ₹6,260.00 |
| 500+ | ₹57.14 | ₹28,570.00 |
| 1,000+ | ₹54.20 | ₹54,200.00 |
1 × ₹99.99
₹99.99
excl. GST
₹117.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK2890-01MR-VB
₹99.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 725pF
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.5 g
Overview
Applications
- OR Gate Applications - Servers - DC/DC Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3659-VB#C22389244VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹96.00 · 10 in stock | View |
 | VBMB1303#C481031VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹95.61 · 5 in stock | View |
 | PSMN3R9-60XS127-VB#C52191102VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹223.14 · 5 in stock | View |
 | H7N0308CF-VB#C693301VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 3 | ₹96.00 · 3 in stock | View |
 | VBM1302#C481008VBsemi Elec · ITO-220AB-3 | VBsemi Elec | ITO-220AB-3 | 6 | ₹132.66 · 6 in stock | View |
