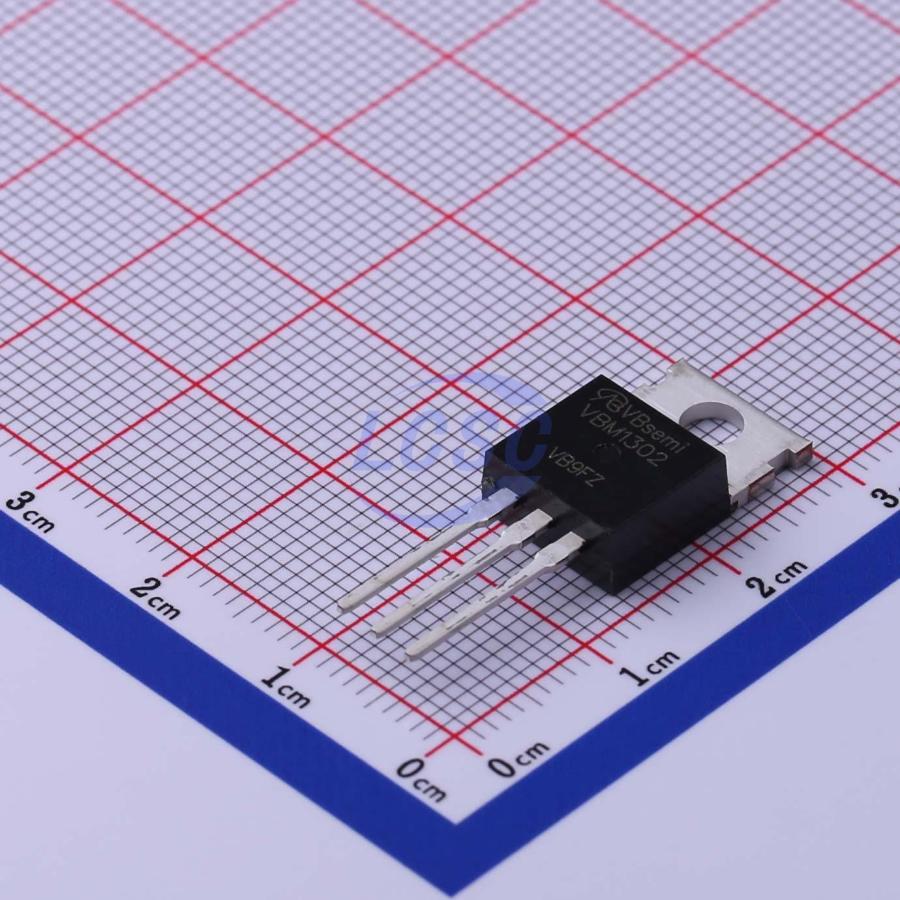

VBM1302
N-Channel 30V 140A 3.75W Through Hole ITO-220AB-3
ITO-220AB-3RoHSActive
MOSFET N-CH 30V 140A ITO-220AB-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBM1302
- Store part #
- C481008
- Package / case
- ITO-220AB-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C481008
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.66 | ₹132.66 |
| 10+ | ₹108.76 | ₹1,087.60 |
| 50+ | ₹85.72 | ₹4,286.00 |
| 100+ | ₹73.77 | ₹7,377.00 |
| 500+ | ₹66.64 | ₹33,320.00 |
| 1,000+ | ₹62.87 | ₹62,870.00 |
1 × ₹132.66
₹132.66
excl. GST
₹156.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBM1302
₹132.66 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 140A
- Ciss-Input Capacitance
- 8.4nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
Applications
- OR-ing
- Server DC/DC
Key features
- DT-Trench Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2011/65/EU
