VBsemi ElecDatasheet (PDF)

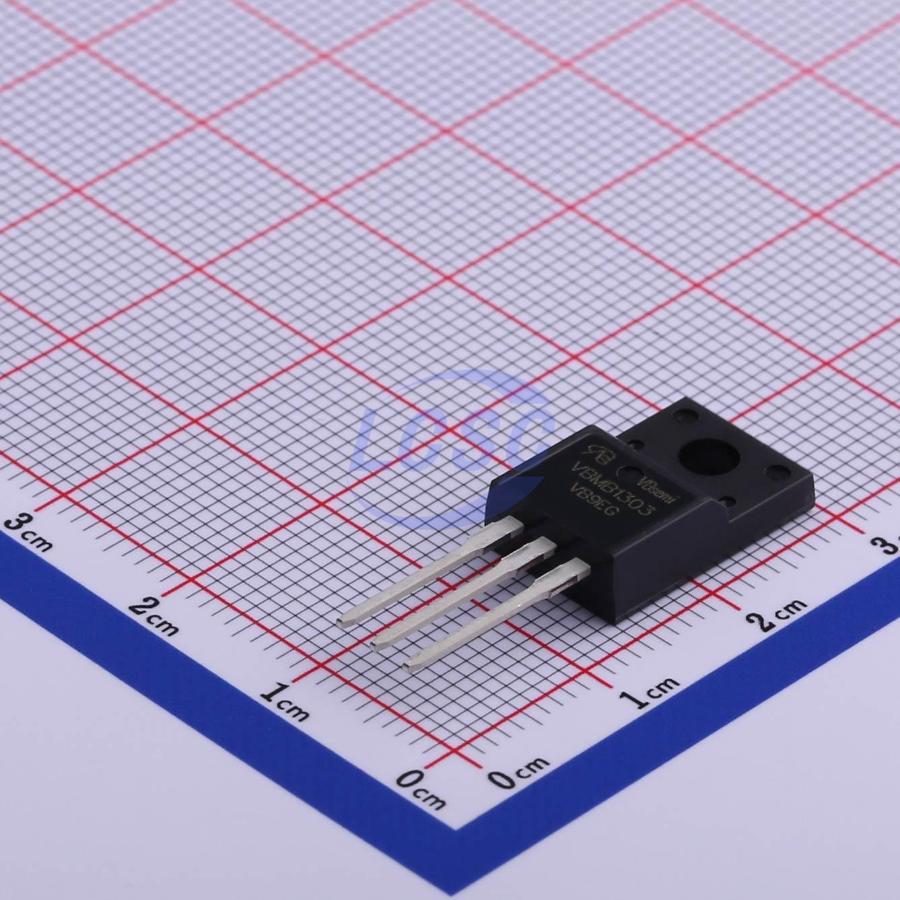

VBMB1303
N-Channel 30V 140A 3.75W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 30V 140A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBMB1303
- Store part #
- C481031
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C481031
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.61 | ₹95.61 |
| 10+ | ₹77.85 | ₹778.50 |
| 50+ | ₹64.07 | ₹3,203.50 |
| 100+ | ₹55.30 | ₹5,530.00 |
| 500+ | ₹49.90 | ₹24,950.00 |
| 1,000+ | ₹47.11 | ₹47,110.00 |
| 2,000+ | ₹46.52 | ₹93,040.00 |
| 4,000+ | ₹46.12 | ₹1,84,480.00 |
1 × ₹95.61
₹95.61
excl. GST
₹112.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBMB1303
₹95.61 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 725pF
- Current - Continuous Drain(Id)
- 140A
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 4mΩ@10V;5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.36 g
Overview
Applications
- OR Gate - Server - DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK2890-01MR-VB#C20417477VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹99.99 · 40 in stock | View |
 | 2SK3659-VB#C22389244VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹96.00 · 10 in stock | View |
 | H7N0308CF-VB#C693301VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 3 | ₹96.00 · 3 in stock | View |
 | VBM1302#C481008VBsemi Elec · ITO-220AB-3 | VBsemi Elec | ITO-220AB-3 | 6 | ₹132.66 · 6 in stock | View |
 | PSMN3R9-60XS127-VB#C52191102VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹223.14 · 5 in stock | View |
