VBsemi ElecDatasheet (PDF)

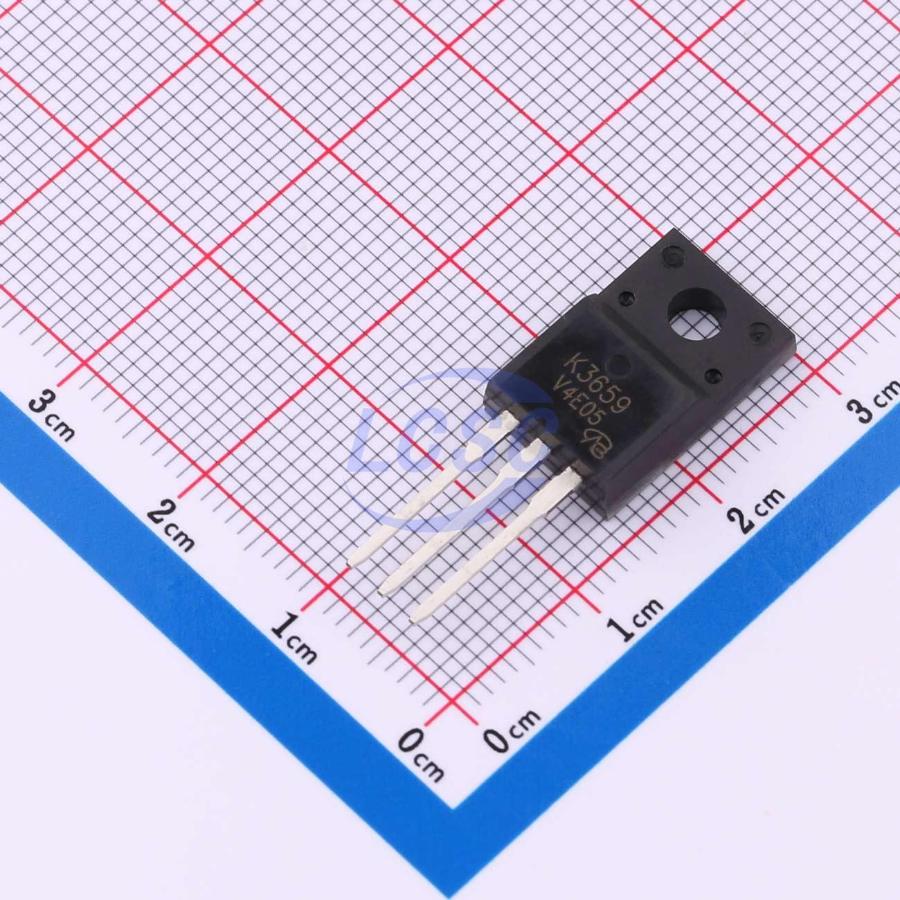

2SK3659-VB
N-Channel 30V 140A 250W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 30V 140A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3659-VB
- Store part #
- C22389244
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389244
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.00 | ₹96.00 |
| 10+ | ₹77.30 | ₹773.00 |
| 50+ | ₹68.07 | ₹3,403.50 |
| 100+ | ₹58.61 | ₹5,861.00 |
| 500+ | ₹53.14 | ₹26,570.00 |
| 1,000+ | ₹50.21 | ₹50,210.00 |
1 × ₹96.00
₹96.00
excl. GST
₹113.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK3659-VB
₹96.00 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 725pF
- Ciss-Input Capacitance
- 2.765nF
- Pd - Power Dissipation
- 250W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81.5nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.19 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
