HTCDatasheet (PDF)

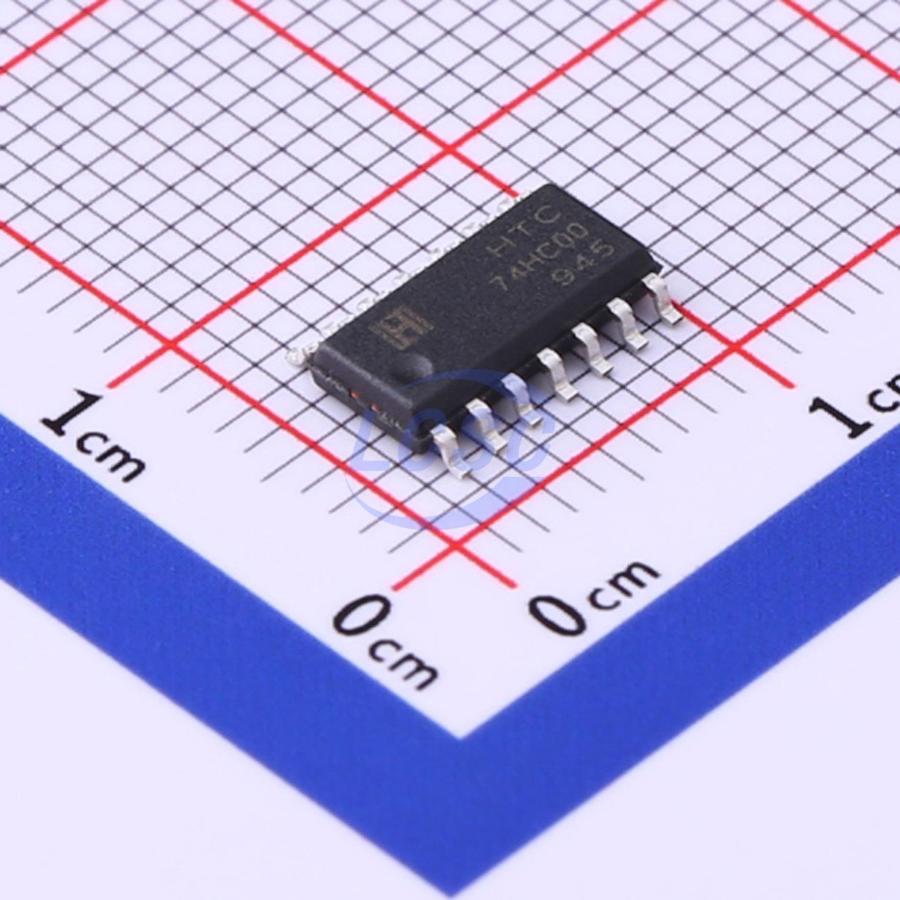

74HC00D
2V~6V 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS CompliantActive
Quad 2-Input NAND Gates
- Manufacturer
- HTC
- Manufacturer part #
- 74HC00D
- Store part #
- C699445
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C699445
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.65 | ₹258.25 |
| 50+ | ₹40.03 | ₹2,001.50 |
| 150+ | ₹35.06 | ₹5,259.00 |
| 500+ | ₹28.85 | ₹14,425.00 |
| 2,500+ | ₹26.09 | ₹65,225.00 |
| 5,000+ | ₹24.44 | ₹1,22,200.00 |
5 × ₹51.65
₹258.25
excl. GST
₹304.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC00D
₹258.25 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 115ns@2V,50pF;23ns@4.5V,50pF;20ns@6V,50pF
- Output Logic Level - Low
- 100mV;330mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;3.84V;5.34V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The 74HC00 contain four independent, 2-input NAND gates. They perform the Boolean function Y = A × B or Y = A + B in positive logic. Inputs include clamp diodes.
Applications
- AV Receivers
- Portable Audio Docks
- Blu-ray Players and Home Theater
- Wireless Devices
Key features
- Wide Operating Voltage Range of 2.0V to 6.0V
- Outputs Can Drive up to 10 LSTTL Loads
- Low Power Consumption, 20μA Maximum ICC
- Typical tpd: 8ns
- ±4mA Output Drive at 5.0V
- Low Input Current of 1μA Maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XL74LS00#C609793XINLUDA · SOP-14 | XINLUDA | SOP-14 | 1,245 | ₹24.67 · 1,245 in stock | View |
 | SN74LS00DS#C52091992GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 3,665 | ₹20.36 · 3,665 in stock | View |
 | MM74HC00MX#C904241onsemi · SOIC-14 | onsemi | SOIC-14 | 5 | ₹59.55 · 5 in stock | View |
 | SN74HC00DTR(XBLW)#C41361404XBLW · SOP-14 | XBLW | SOP-14 | 1,590 | ₹13.14 · 1,590 in stock | View |
 | SN74HC00DR#C10090TI · SOIC-14 | TI | SOIC-14 | 86,065 | ₹16.64 · 86,065 in stock | View |
