DIODES

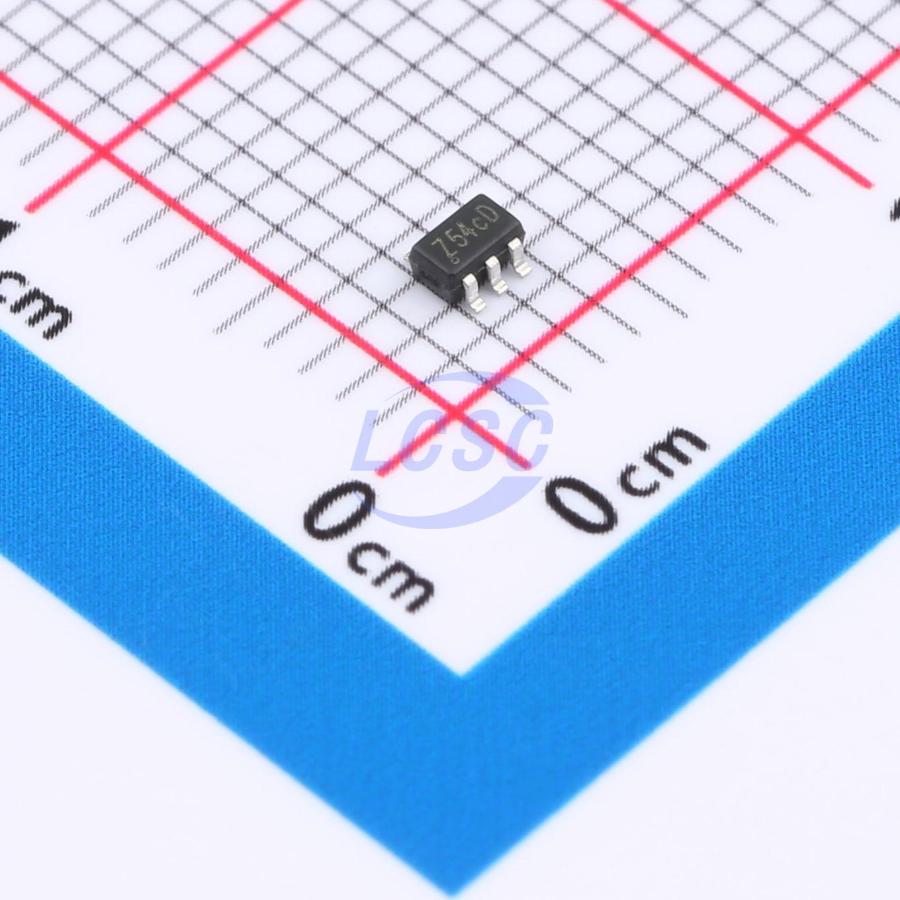

74LVC2G14DW-7

Schmitt trigger 1.65V~5.5V 4.7ns@5V,50pF 40uA 2 SOT-363 Gates and Inverters RoHS

SOT-363ROHS3 CompliantActive

Dual Schmitt Trigger Inverters

Manufacturer: DIODES
Manufacturer part #: 74LVC2G14DW-7
Store part #: C362110
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,825 in stock

#C362110

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹17.04	₹85.20
50+	₹13.65	₹682.50
150+	₹11.97	₹1,795.50
500+	₹10.70	₹5,350.00
3,000+	₹9.68	₹29,040.00
6,000+	₹9.18	₹55,080.00

Quantity (min 5, multiples of 5)

5 × ₹17.04

₹85.20

excl. GST

₹100.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G14DW-7

₹85.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.7ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 250mV~1.2V
Input Logic Level - High: 1.5V~3.6V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The 74LVC2G14 is a dual Schmitt trigger inverter gate with standard push- pull outputs. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V, allowing this device to be used in a mixed- voltage environment. The device is fully specified for partial power down applications using loFF. The loFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A(overline)

Applications

Voltage level shifting
General-purpose logics
Power down signal isolations
PCs, networking, notebooks, netbooks, tablets
Computer peripherals, hard drives, SSD, CD/DVD ROM
TV, DVD, DVR, set-top boxes
Cell phones, personal navigations/GPS
MP3 players, cameras, video recorders

Key features

Wide supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.0V
CMOS Low Power Consumption
loFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch-up Exceeds 100mA per JESD 78, Class I
X2-DFN1409-6 Package Designed as a Direct Replacement for Chip Scale Packaging
Range of Package Options SOT26, SOT363, X1-DFN1010-6 (Type B), X2-DFN1010-6, X2-DFN1409-6, and X2-DFN1410-6
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TP74LVC2G14C6#C42460204TECH PUBLIC · SOT-363	TECH PUBLIC	SOT-363	2,890	₹12.58 · 2,890 in stock	View
74LVC2G04GW,125#C192549Nexperia · SOT-363	Nexperia	SOT-363	58,865	₹20.47 · 58,865 in stock	View
74LVC2G04GW#C52140491MDD(Microdiode Semiconductor) · SOT-363	MDD(Microdiode Semiconductor)	SOT-363	4,218	₹16.59 · 4,218 in stock	View
EM74LVC2G04GW#C49188105EnergyMath · SOT-363	EnergyMath	SOT-363	2,980	₹7.55 · 2,980 in stock	View
EM74LVC2G14GW#C49188097EnergyMath · SOT-363	EnergyMath	SOT-363	540	₹7.55 · 540 in stock	View
