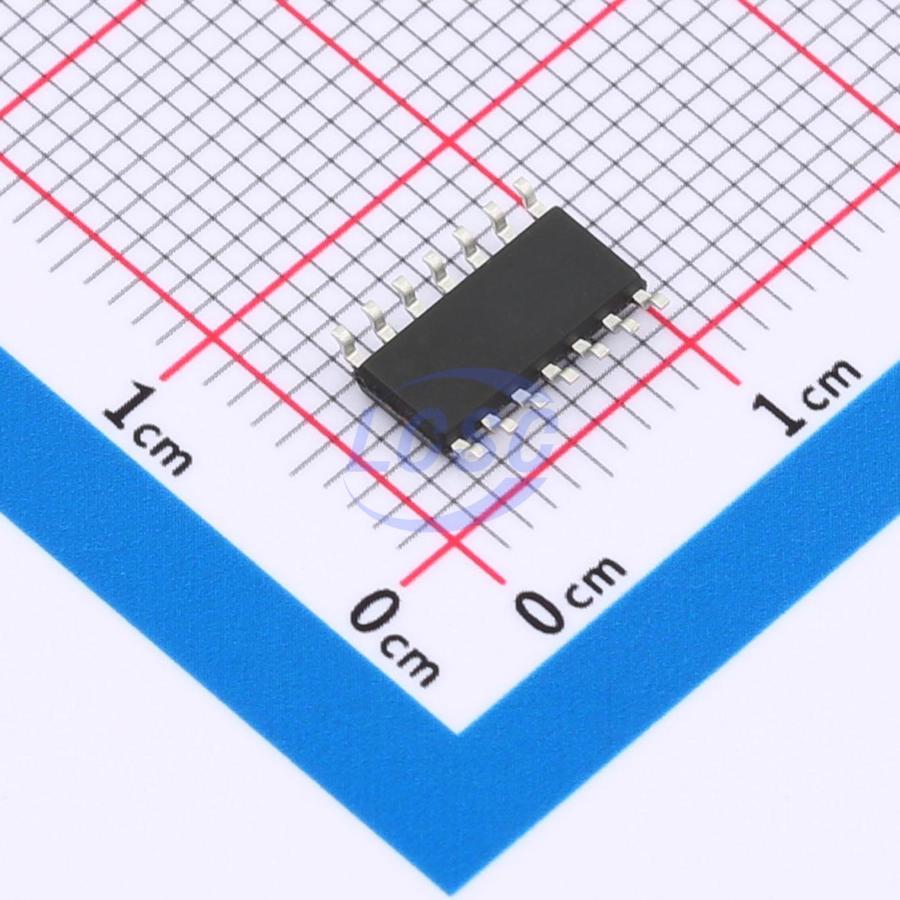

CD4011BM(LX)
1uA 3V~15V 90ns@15V SOP-14 Gates and Inverters
SOP-14RoHSActive
Quad 2-input Nand Gate
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4011BM(LX)
- Store part #
- C22384786
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,230 in stock
#C22384786
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.27 | ₹92.70 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.51 | ₹1,953.00 |
| 1,000+ | ₹5.82 | ₹5,820.00 |
| 4,000+ | ₹5.27 | ₹21,080.00 |
| 8,000+ | ₹5.00 | ₹40,000.00 |
10 × ₹9.27
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4011BM(LX)
₹92.70 for 10 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.251 g
Overview
The CD4011 is a quad 2-input NAND gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40℃ to +85℃
- Packaging information: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4093BM(LX)#C32710659lingxingic · SOP-14 | lingxingic | SOP-14 | 4,265 | ₹14.95 · 4,265 in stock | View |
 | HEF4011BT(LX)#C52261131lingxingic · SOP-14 | lingxingic | SOP-14 | On request | ₹16.95 · 0 in stock | View |
 | HEF4093BT(LX)#C52261129lingxingic · SOP-14 | lingxingic | SOP-14 | 4,000 | ₹18.89 · 4,000 in stock | View |
