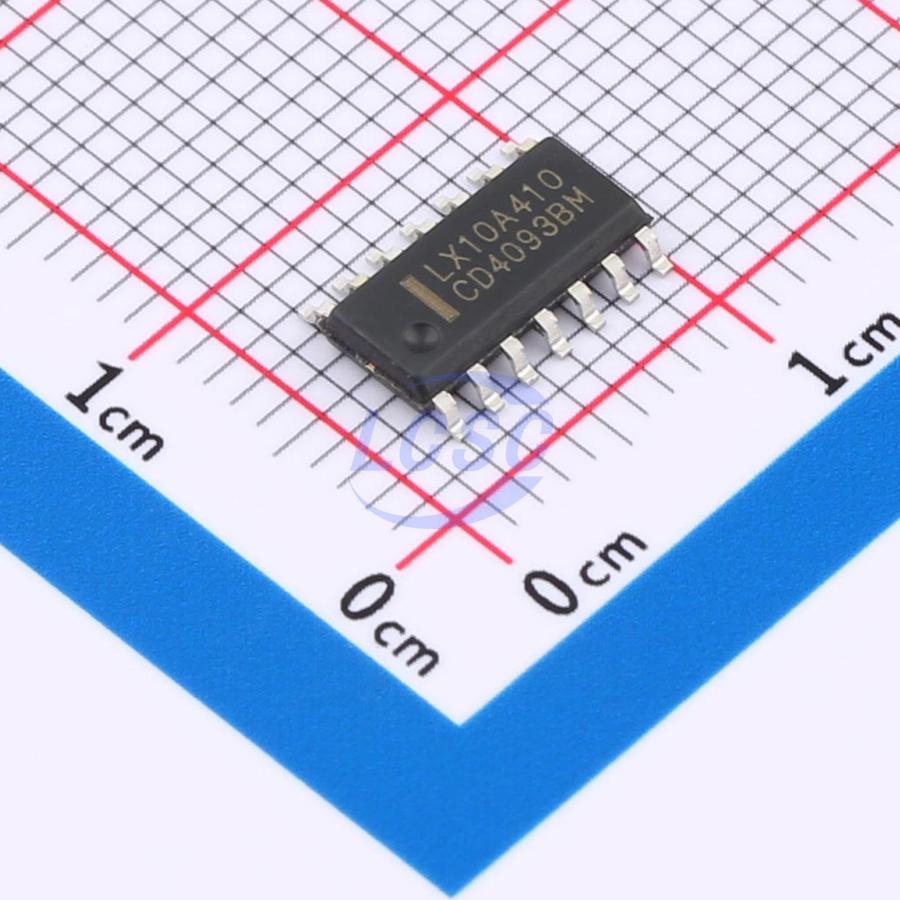

CD4093BM(LX)
NAND Gate IC 4 Channel Schmitt Trigger SOP-14
SOP-14RoHSActive
4093 (LX) 4-channel 2-input Schmitt NAND gate
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4093BM(LX)
- Store part #
- C32710659
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,265 in stock
#C32710659
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.95 | ₹74.75 |
| 50+ | ₹11.85 | ₹592.50 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹9.14 | ₹4,570.00 |
| 2,500+ | ₹8.20 | ₹20,500.00 |
| 4,000+ | ₹7.74 | ₹30,960.00 |
5 × ₹14.95
₹74.75
excl. GST
₹88.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4093BM(LX)
₹74.75 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 0V~50mV
- Propagation Delay
- 50ns@15V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.262 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4011BM(LX)#C22384786lingxingic · SOP-14 | lingxingic | SOP-14 | 3,230 | ₹9.27 · 3,230 in stock | View |
 | HEF4093BT(LX)#C52261129lingxingic · SOP-14 | lingxingic | SOP-14 | 4,000 | ₹18.89 · 4,000 in stock | View |
 | HEF4011BT(LX)#C52261131lingxingic · SOP-14 | lingxingic | SOP-14 | On request | ₹16.95 · 0 in stock | View |
