lingxingic

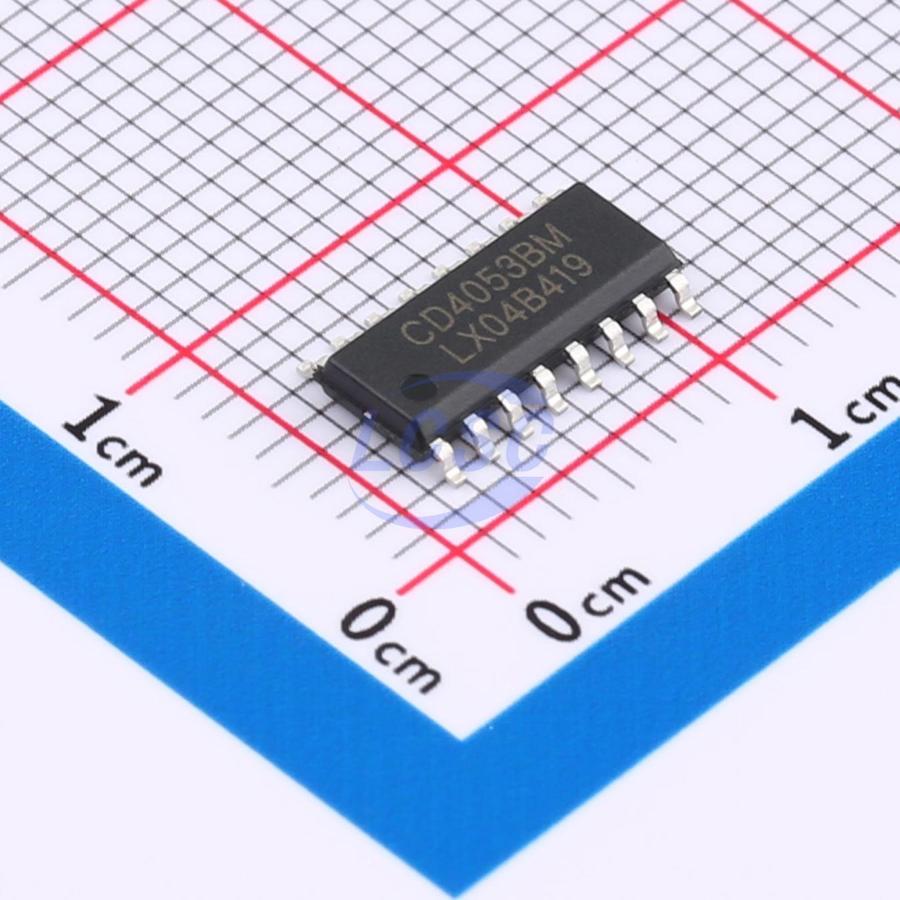

CD4053BM(LX)

3V~9V 3 350Ω SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Triple 2-channel Analog Multiplexer/Demultiplexer

Manufacturer: lingxingic
Manufacturer part #: CD4053BM(LX)
Store part #: C24833621
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,180 in stock

#C24833621

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹12.50	₹62.50
50+	₹10.05	₹502.50
150+	₹8.82	₹1,323.00
500+	₹7.91	₹3,955.00
2,500+	₹7.17	₹17,925.00
5,000+	₹6.80	₹34,000.00

Quantity (min 5, multiples of 5)

5 × ₹12.50

₹62.50

excl. GST

₹73.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4053BM(LX)

₹62.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Voltage - Supply: 3V~9V
Number of Channels: 3
Ron: 350Ω
Propagation Delay: 150ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.272 g

Overview

The CD4053 is a triple single-pole double-throw (SPDT) analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. Each switch has a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). All three switches share an enable input (E). A HIGH on E causes all switches into the high-impedance OFF-state, independent of Sn. VDD and VSS are the supply voltage connections for the digital control inputs (Sn and E). The VDD to VSS range is 3V to 9V. The analog inputs/outputs (nY0, nY1, and nZ) can swing between VDD as a positive limit and VEE as a negative limit. VDD - VEE may not exceed 9V. Unused inputs must be connected to VDD, VSS, or another input. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS (typically ground). VEE and VSS are the supply voltage connections for the switches.

Key features

Wide supply voltage range from 3V to 9V
Fully static operation
5V and 9V parametric ratings
Standardized symmetrical output characteristics
Specified from -40°C to +125°C
Packaging information: DIP16/SOP16/TSSOP16

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SN74HC4053D(LX)#C22374066lingxingic · SOP-16	lingxingic	SOP-16	2,495	₹15.10 · 2,495 in stock	View
	HEF4053BT(LX)#C52261128lingxingic · SOP-16	lingxingic	SOP-16	3,555	₹18.11 · 3,555 in stock	View
