lingxingic

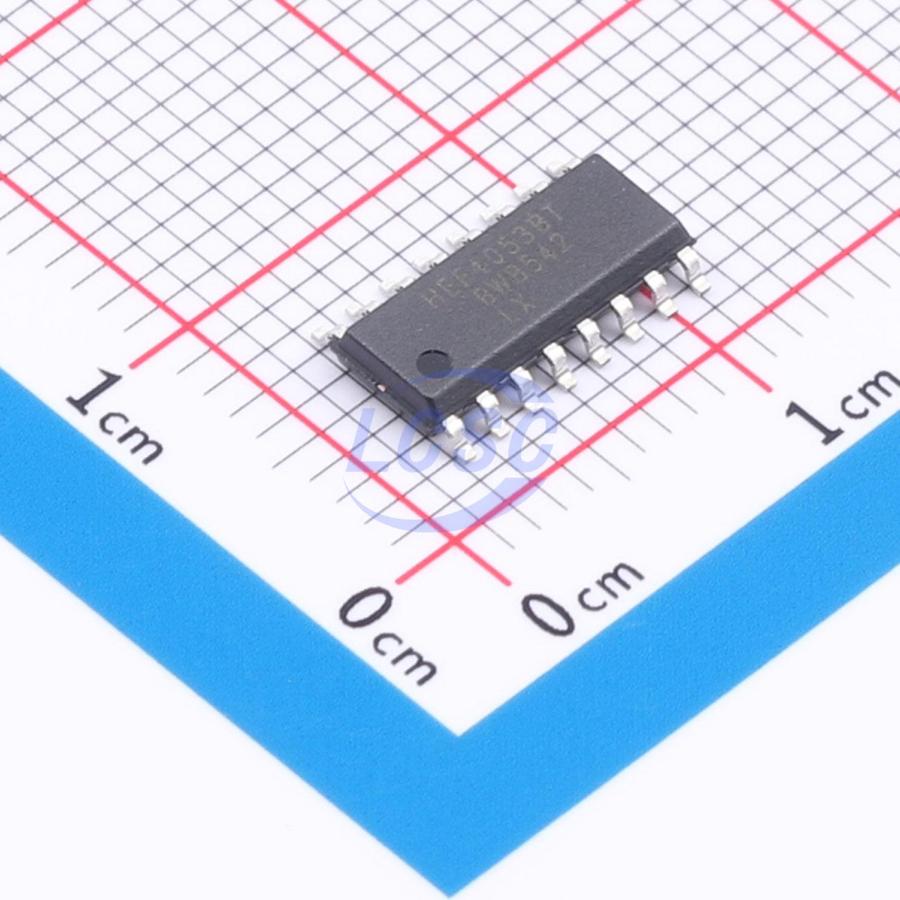

HEF4053BT(LX)

3V~9V 3 80Ω SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Manufacturer: lingxingic
Manufacturer part #: HEF4053BT(LX)
Store part #: C52261128
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,555 in stock

#C52261128

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹18.11	₹90.55
50+	₹14.38	₹719.00
150+	₹12.52	₹1,878.00
500+	₹11.11	₹5,555.00
2,500+	₹9.99	₹24,975.00
4,000+	₹9.43	₹37,720.00

Quantity (min 5, multiples of 5)

5 × ₹18.11

₹90.55

excl. GST

₹106.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

HEF4053BT(LX)

₹90.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~9V
Number of Channels: 3
Ron: 80Ω
Propagation Delay: 4ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.14 g

Overview

The HEF4053 is a triple single-pole double-throw analog switch designed for analog or digital multiplexers/demultiplexers. Each switch has one digital selection input, two independent inputs/outputs, and one common input/output. All three switches share a single enable input. A high-level enable signal places all switches into a high-impedance off state, regardless of the selection inputs. VDD and VSS are the supply voltage connections for the digital control inputs, with a voltage range of 3V to 9V. The analog inputs/outputs can swing between VDD as the positive limit and VEE as the negative limit. VDD − VEE must not exceed 9V. Unused inputs must be connected to VDD, VSS, or other inputs. When operating as a digital multiplexer/demultiplexer, VEE is connected to VSS. VEE and VSS are the supply voltage connections for the switches.

Key features

Wide supply voltage range: 3V to 9V
Fully static operation
5V and 9V parametric specifications
Standardized symmetrical output characteristics
Operating temperature range: -40°C to +125°C
Package: SOP16/TSSOP16
