lingxingic

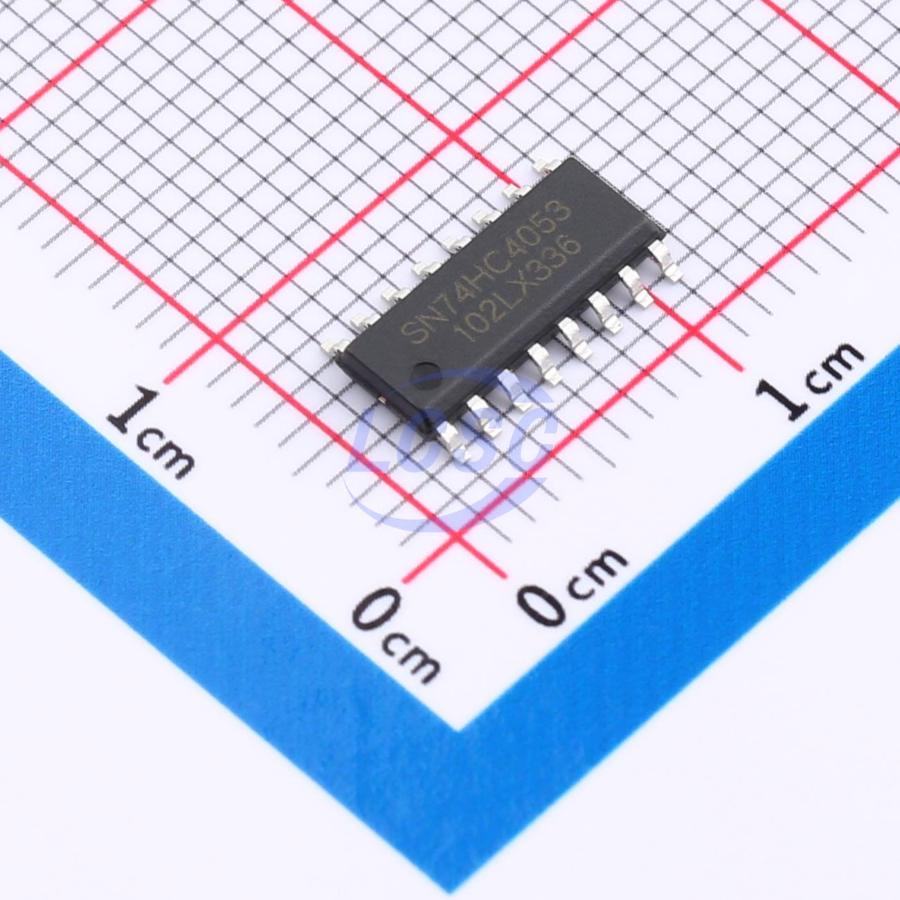

SN74HC4053D(LX)

3 3V~9V 80Ω SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Triple 2-channel Analog Multiplexer/Demultiplexer

Manufacturer: lingxingic
Manufacturer part #: SN74HC4053D(LX)
Store part #: C22374066
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,495 in stock

#C22374066

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹15.10	₹75.50
50+	₹12.11	₹605.50
150+	₹10.60	₹1,590.00
500+	₹9.47	₹4,735.00
2,500+	₹8.57	₹21,425.00
5,000+	₹8.12	₹40,600.00

Quantity (min 5, multiples of 5)

5 × ₹15.10

₹75.50

excl. GST

₹89.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC4053D(LX)

₹75.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel;Level shifting;Glitch-free switching
Operating Temperature: -40℃~+85℃
Number of Channels: 3
Voltage - Supply: 3V~9V
Ron: 80Ω
Propagation Delay: 4ns

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.276 g

Overview

The SN74HC/HCT4053 is a triple single-pole double-throw analog switch (3×SPDT) suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable input (E) is common to all switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range from -5 V to +5 V
Wide supply voltage range SN74HC4053: from 3V to 9V SN74HCT4053: from 4.5V to 5.5V
Low ON resistance:
80 Ω (typical) at VCC - VEE = 4.5 V
70 Ω (typical) at ΔVCC - VEE = 6.0 V
60 Ω (typical) at ΔVCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical “break before make” built-in
Specified from -40 °C to +85 °C
Packaging information: DIP16/SOP16/TSSOP16

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	HEF4053BT(LX)#C52261128lingxingic · SOP-16	lingxingic	SOP-16	3,555	₹18.11 · 3,555 in stock	View
	CD4053BM(LX)#C24833621lingxingic · SOP-16	lingxingic	SOP-16	2,180	₹12.50 · 2,180 in stock	View
