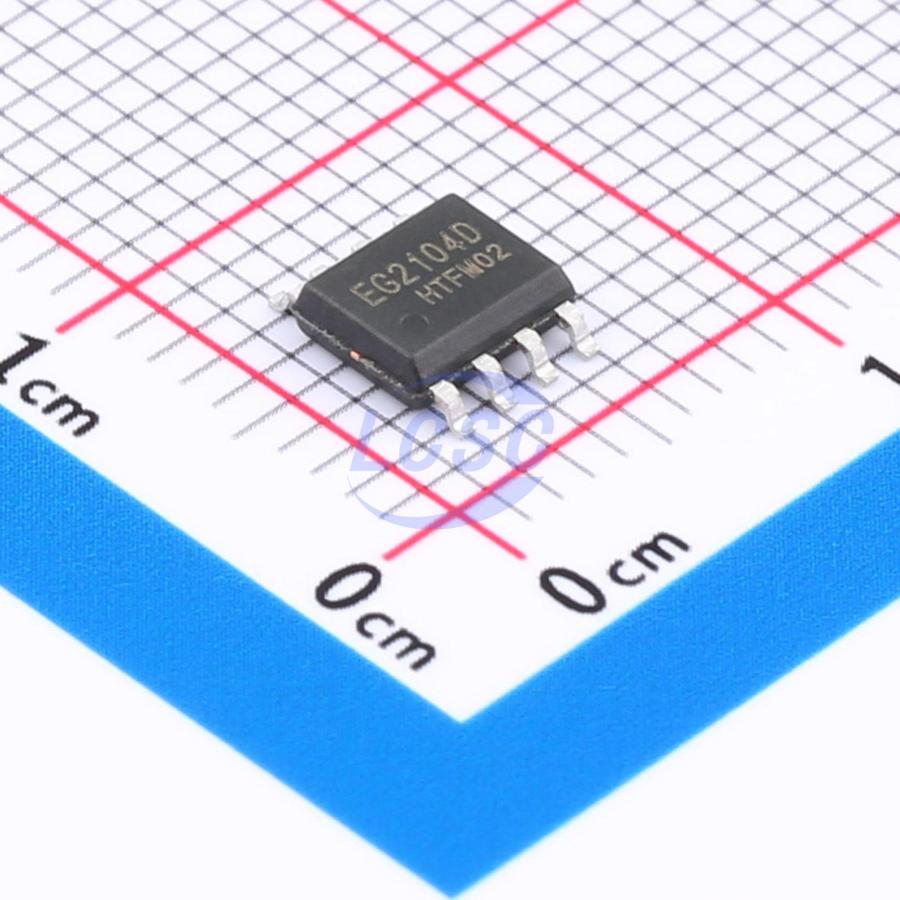

EG2104D
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
Half-bridge MOSFET driver chip with SD function
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2104D
- Store part #
- C20416233
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,605 in stock
#C20416233
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.94 | ₹199.70 |
| 50+ | ₹31.20 | ₹1,560.00 |
| 150+ | ₹27.44 | ₹4,116.00 |
| 500+ | ₹22.77 | ₹11,385.00 |
| 2,500+ | ₹22.60 | ₹56,500.00 |
| 4,000+ | ₹21.35 | ₹85,400.00 |
5 × ₹39.94
₹199.70
excl. GST
₹235.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2104D
₹199.70 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 850ns
- High Level Delay Time
- 250ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 9V~25V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
EG2104D is a cost-effective gate driver IC dedicated to MOSFETs and IGBTs with SD functionality. It integrates logic signal input processing, dead-time control, level shift, pulse filtering, and output driver circuits, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG2104D supports a high-side operating voltage up to 600V and a wide low-side VCC supply voltage range of 9V–25V. The input channel IN incorporates a built-in 200K pull-down resistor, and SD incorporates a built-in 200K pull-down resistor, ensuring both high-side and low-side power MOSFETs remain off when inputs are floating. Output current capability is IO +/- 0.3/0.6A. Available in SOP8 package.
Applications
- Mobile power high-voltage fast-charge switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
- High-voltage Class-D amplifier
Key features
- High-side bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltages
- Maximum switching frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 9V – 25V
- Output current capability: |0 +/- 0.3A / 0.6A
- Built-in dead-time control circuit
- SD input active-low, disables HO and LO outputs
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG2108D#C49307957EG Micro · SOP-8 | EG Micro | SOP-8 | 3,710 | ₹37.72 · 3,710 in stock | View |
 | EG2304D#C49307961EG Micro · SOP-8 | EG Micro | SOP-8 | 3,960 | ₹35.24 · 3,960 in stock | View |
| EG2101D#C49450887EG Micro · SOP-8 | EG Micro | SOP-8 | 3,265 | ₹16.64 · 3,265 in stock | View | |
| EG2106L#C54900444EG Micro · SOP-8 | EG Micro | SOP-8 | 3,455 | ₹20.65 · 3,455 in stock | View | |
 | EG2104M#C480653EG Micro · SOIC-8 | EG Micro | SOIC-8 | 28,680 | ₹43.17 · 28,680 in stock | View |
