VBsemi ElecDatasheet (PDF)

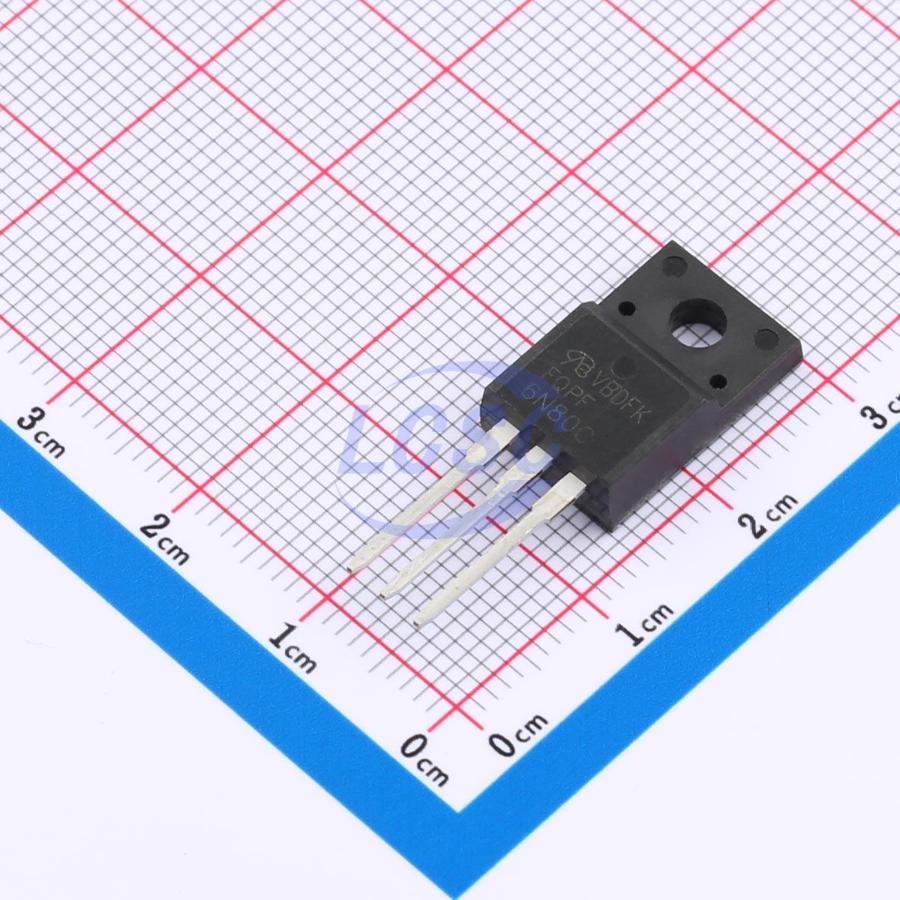

FQPF6N80C-VB
N-Channel 850V 3.9A 45W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 850V 3.9A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FQPF6N80C-VB
- Store part #
- C7463498
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C7463498
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹190.74 | ₹190.74 |
| 10+ | ₹158.60 | ₹1,586.00 |
| 50+ | ₹140.95 | ₹7,047.50 |
| 100+ | ₹121.20 | ₹12,120.00 |
| 500+ | ₹112.39 | ₹56,195.00 |
| 1,000+ | ₹108.39 | ₹1,08,390.00 |
1 × ₹190.74
₹190.74
excl. GST
₹225.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
FQPF6N80C-VB
₹190.74 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 850V
- Output Capacitance(Coss)
- 68pF
- Current - Continuous Drain(Id)
- 3.9A
- Ciss-Input Capacitance
- 816pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.72 g
Overview
Applications
- Cold Cathode Fluorescent Lamp (CCFL) inverter
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBMB185R05#C516968VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 48 | ₹183.84 · 48 in stock | View |
 | STF2N80K5-VB#C20626373VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹184.73 · 40 in stock | View |
 | SPA02N80C3-VB#C20755690VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 46 | ₹205.59 · 46 in stock | View |
 | STP3NB80FP-VB#C7525106VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹200.14 · 50 in stock | View |
 | 2SK2632LS-VB#C7568968VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹195.72 · 10 in stock | View |
