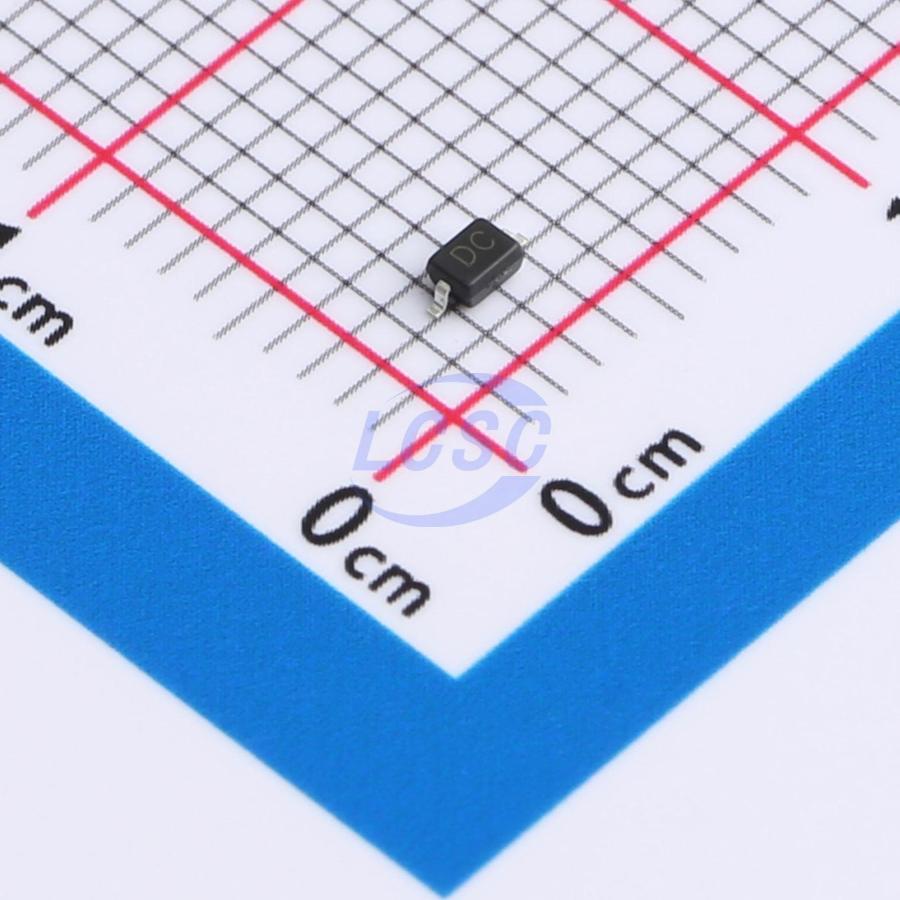

HAQ4022-01FTG-C
28.6VC Clamp 12A Ipp ESD DIODE SOD-323
ESD DIODE 12VWM 28.6VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAQ4022-01FTG-C
- Store part #
- C22440199
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C22440199
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.18 | ₹155.90 |
| 50+ | ₹24.98 | ₹1,249.00 |
| 150+ | ₹22.32 | ₹3,348.00 |
| 500+ | ₹19.00 | ₹9,500.00 |
| 3,000+ | ₹17.52 | ₹52,560.00 |
| 6,000+ | ₹16.63 | ₹99,780.00 |
5 × ₹31.18
₹155.90
excl. GST
₹183.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAQ4022-01FTG-C
₹155.90 for 5 + GST
Specifications
- Clamping Voltage
- 28.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
HAQ4022-01FTG-C protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not practical. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 12V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
