HUCD32C12L01

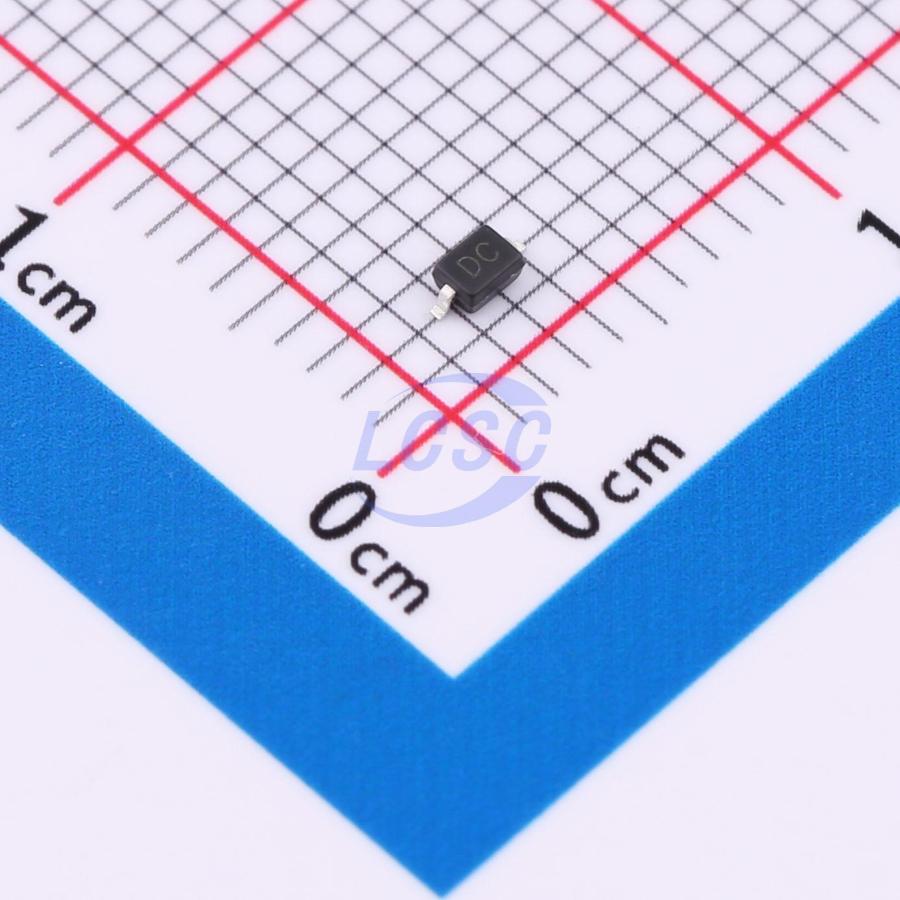

HUCD32C12L01 protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are impractical. The package type is SOD-323. This product is not suitable for applications requiring extremely high reliability. Huaxuanyang Electronics assumes no liability for equipment failures resulting from use of product values exceeding rated specifications. The performance and characteristics specified in the product specifications are measured under standalone conditions and cannot be guaranteed in customer end products. Customers should evaluate and test the product in their final applications. Huaxuanyang Electronics strives to provide high-quality, high-reliability products; however, all semiconductor products carry a certain probability of failure, and safety measures should be incorporated into designs. If the product is subject to export controls, the appropriate licenses must be obtained. No part of this document may be reproduced or distributed in any form without prior written permission from Huaxuanyang Electronics. The information in this document is provided for reference only, is not guaranteed for use in mass production, and is subject to change without notice. When designing equipment, please refer to the "Delivery Specification" for the Huaxuanyang Electronics product you plan to use.

Key features

• Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
• Peak power dissipation: 350W (8/20μs)
• Working voltage: 12V
• Protects one Vcc or data line
• Low clamping voltage
• Low leakage current
