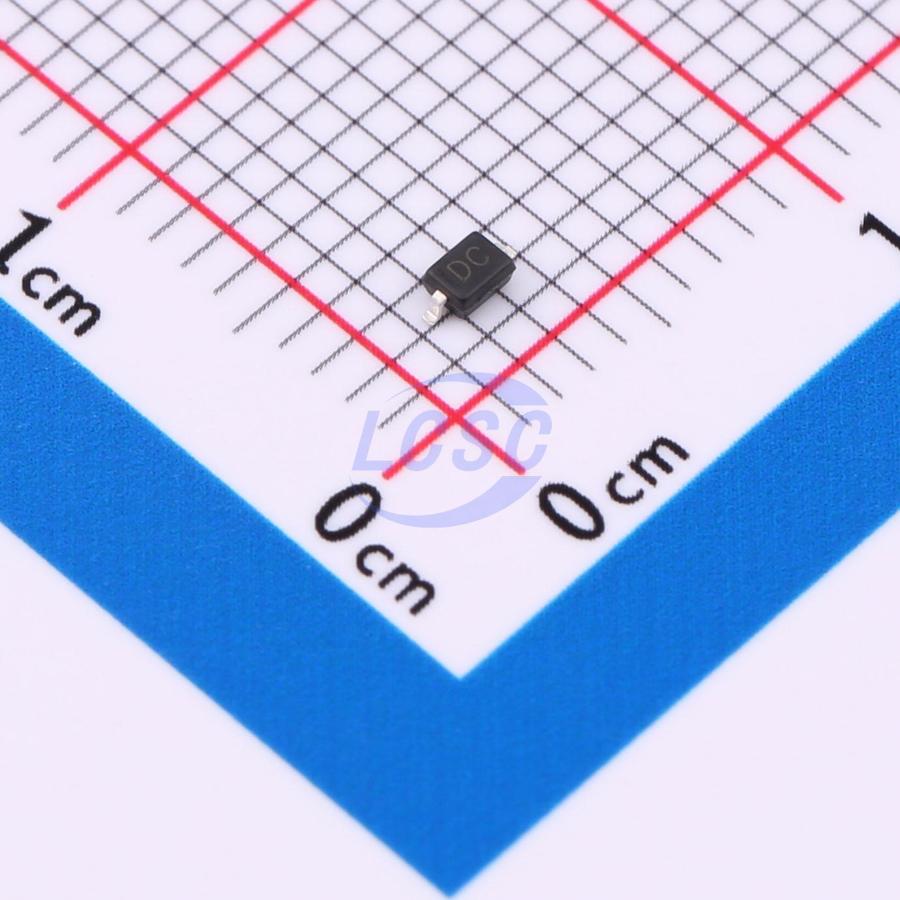

HSPD9112W-2/TR
28.6VC Clamp 12A Ipp ESD DIODE SOD-323
ESD DIODE 12VWM 28.6VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSPD9112W-2/TR
- Store part #
- C22439921
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C22439921
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.53 | ₹85.30 |
| 100+ | ₹6.88 | ₹688.00 |
| 300+ | ₹6.05 | ₹1,815.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.92 | ₹29,520.00 |
| 9,000+ | ₹4.67 | ₹42,030.00 |
10 × ₹8.53
₹85.30
excl. GST
₹100.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSPD9112W-2/TR
₹85.30 for 10 + GST
Specifications
- Clamping Voltage
- 28.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
HSPD9112W-2/TR protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide industry-leading protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are impractical. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) / ±30kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Operating voltage: 12V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
