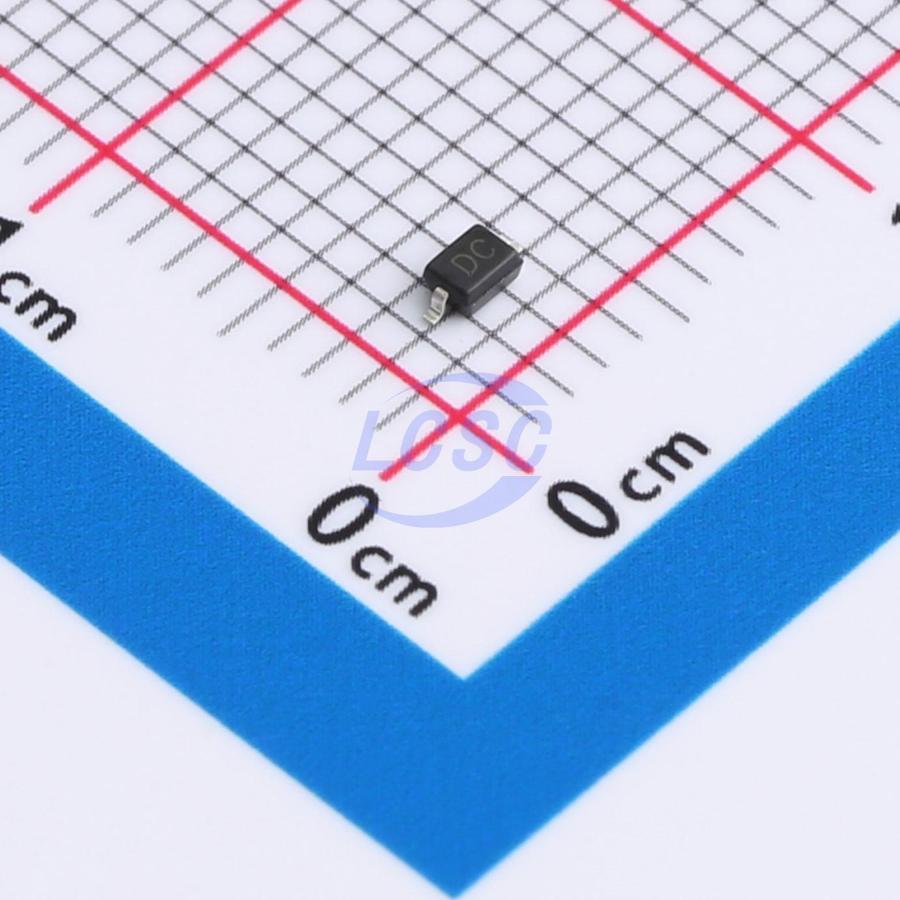

HUDD32C12L01
28.6VC Clamp 12A Ipp ESD DIODE SOD-323
ESD DIODE 12VWM 28.6VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HUDD32C12L01
- Store part #
- C22439767
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C22439767
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.29 | ₹52.90 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.63 | ₹1,089.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.88 | ₹17,280.00 |
| 9,000+ | ₹2.71 | ₹24,390.00 |
10 × ₹5.29
₹52.90
excl. GST
₹62.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HUDD32C12L01
₹52.90 for 10 + GST
Specifications
- Clamping Voltage
- 28.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
This device protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) ±30kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns).
- Peak power dissipation: 350W (8/20us).
- Working voltage: 12V.
- Protects one Vcc or data line.
- Low clamping voltage.
- Low leakage current.
