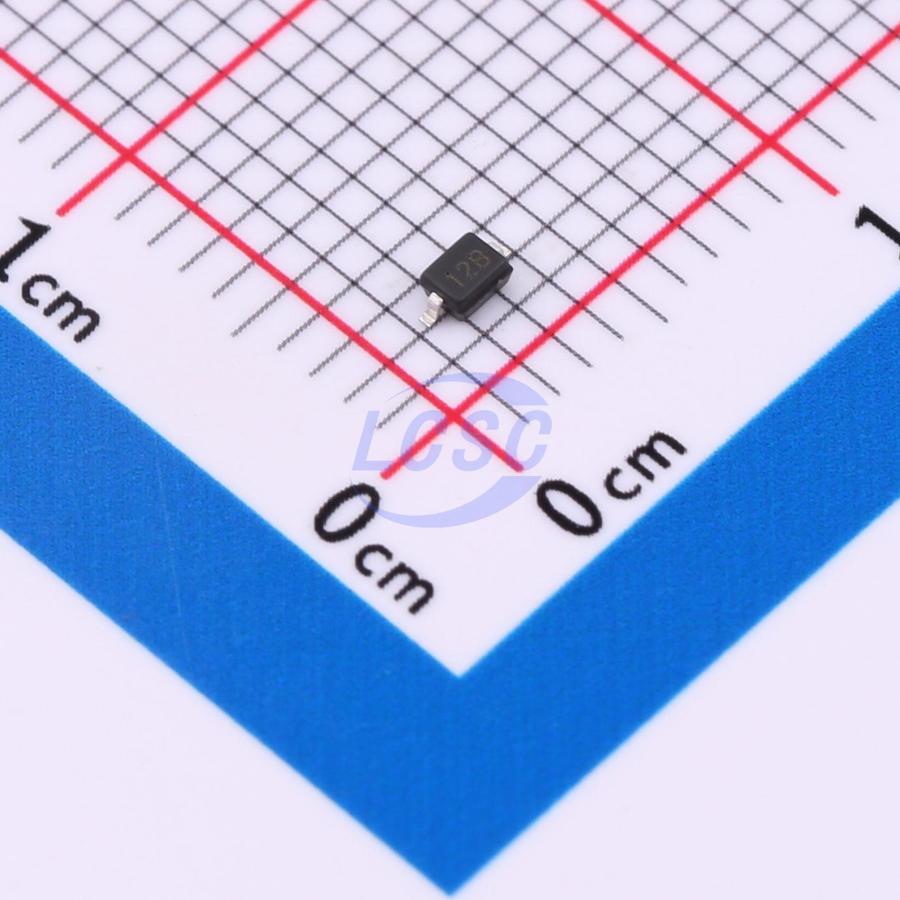

HSDD32C12L01
32VC Clamp 11A Ipp ESD DIODE SOD-323
ESD DIODE 12VWM 32VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSDD32C12L01
- Store part #
- C22440105
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C22440105
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.15 | ₹51.50 |
| 100+ | ₹5.03 | ₹503.00 |
| 300+ | ₹4.95 | ₹1,485.00 |
| 1,000+ | ₹4.87 | ₹4,870.00 |
10 × ₹5.15
₹51.50
excl. GST
₹60.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSDD32C12L01
₹51.50 for 10 + GST
Specifications
- Clamping Voltage
- 32V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.015 g
Overview
HSDD32C12L01 protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. The device offers designers flexibility to protect a single bidirectional line in applications where an array is not suitable. SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): contact discharge ±30kV, air discharge ±30kV; compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 12V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
