HXY MOSFETDatasheet (PDF)

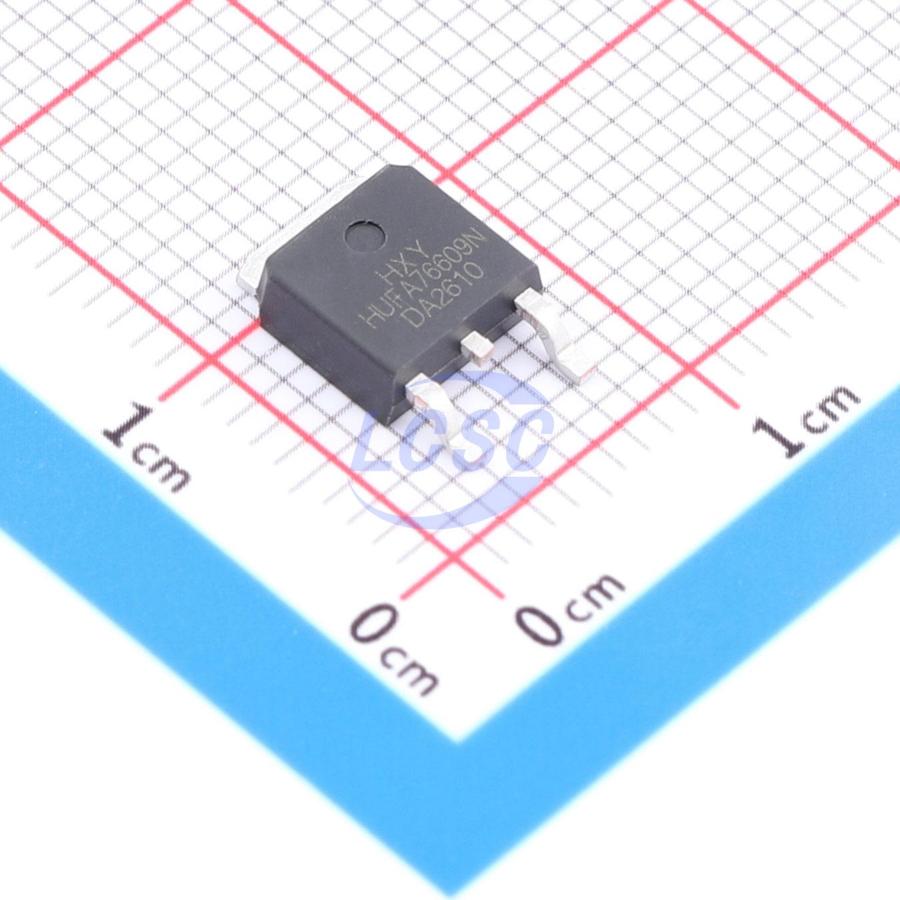

HUFA76609D3ST_NL-HXY
40W 100V 10A 140mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HUFA76609D3ST_NL-HXY
- Store part #
- C54582569
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582569
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.90 | ₹58.90 |
| 10+ | ₹47.07 | ₹470.70 |
| 30+ | ₹42.14 | ₹1,264.20 |
| 100+ | ₹35.91 | ₹3,591.00 |
| 500+ | ₹29.66 | ₹14,830.00 |
| 1,000+ | ₹27.94 | ₹27,940.00 |
1 × ₹58.90
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HUFA76609D3ST_NL-HXY
₹58.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 40W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.392 g
Overview
The HUFA76609D3ST_NL utilizes advanced trench technology and design to deliver excellent on-resistance (RDS(ON)) at low gate charge, making it suitable for a wide range of applications.
Applications
- Power switch applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- VDS = 100V, ID = 10A
- RDS(ON) < 160mΩ at VGS = 10V
- RDS(ON) < 170mΩ at VGS = 4.5V
- High-density cell design for ultra-low on-resistance
- Fully characterized avalanche voltage and current
- Excellent package with good thermal dissipation
