HXY MOSFETDatasheet (PDF)

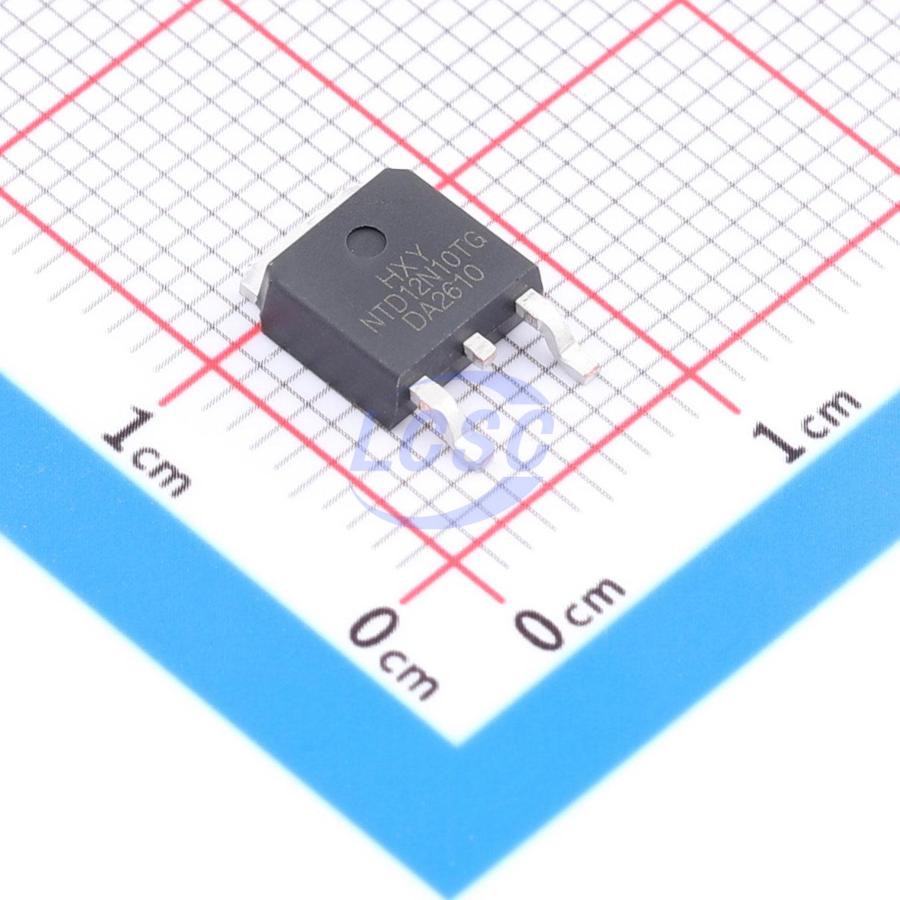

NTD12N10T4G-HXY
100V 10A 40W 140mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTD12N10T4G-HXY
- Store part #
- C54582583
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C54582583
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.54 | ₹217.70 |
| 50+ | ₹34.87 | ₹1,743.50 |
| 150+ | ₹31.16 | ₹4,674.00 |
| 500+ | ₹26.53 | ₹13,265.00 |
| 2,500+ | ₹21.88 | ₹54,700.00 |
| 5,000+ | ₹20.64 | ₹1,03,200.00 |
5 × ₹43.54
₹217.70
excl. GST
₹256.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NTD12N10T4G-HXY
₹217.70 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 650pF
- Pd - Power Dissipation
- 40W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
The NTD12N10T4G utilizes advanced trench technology and design to deliver excellent on-resistance (RDS(ON)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Power switch applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- Drain-Source Voltage (VDS) = 100V, Drain Current (ID) = 10A
- RDS(ON) < 160mΩ at VGS = 10V
- RDS(ON) < 170mΩ at VGS = 4.5V
- High-density cell design for ultra-low on-resistance
- Full avalanche voltage and current capability
- Excellent package with good thermal dissipation
