VISHAYDatasheet (PDF)

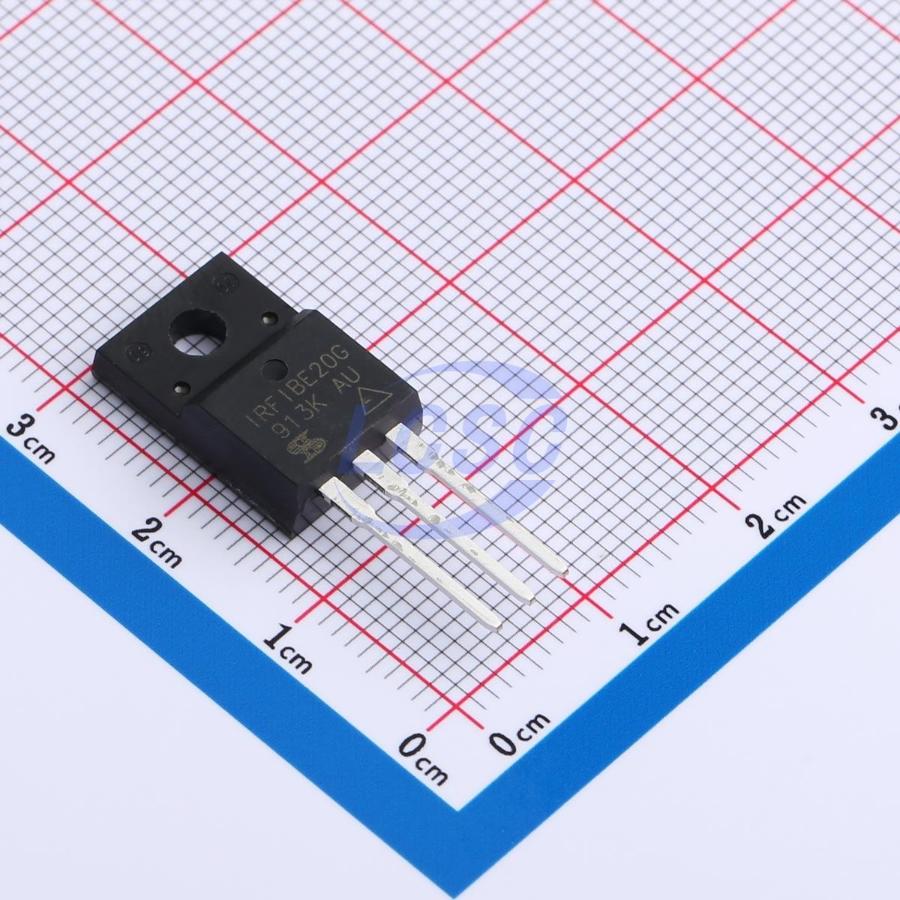

IRFIBE20GPBF
N-Channel 800V 1.4A 30W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 800V 1.4A TO-220-3
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFIBE20GPBF
- Store part #
- C2971988
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C2971988
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹415.91 | ₹415.91 |
| 10+ | ₹369.05 | ₹3,690.50 |
| 50+ | ₹339.83 | ₹16,991.50 |
| 100+ | ₹309.95 | ₹30,995.00 |
| 500+ | ₹296.40 | ₹1,48,200.00 |
| 1,000+ | ₹290.39 | ₹2,90,390.00 |
1 × ₹415.91
₹415.91
excl. GST
₹490.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFIBE20GPBF
₹415.91 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 30W
- Drain to Source Voltage
- 800V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 1.4A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 6.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
Third generation power MOSFETs provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single screw fixing.
Applications
- DC/DC Converters - Server On-Board Power - Synchronous Rectification
Key features
- Isolated package
- High voltage isolation = 2.5 kV RMS (t = 60 s; RoHS f = 60 Hz) COMPLIANT
- Sink to lead creepage distance = 4.8 mm
- Dynamic dV/dt rating
- Low thermal resistance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFBE20PBF#C2634VISHAY · TO-220AB | VISHAY | TO-220AB | 199 | ₹188.41 · 199 in stock | View |
 | IPA80R1K4CEXKSA2#C3278890Infineon · TO-220-FP | Infineon | TO-220-FP | 42 | ₹219.58 · 42 in stock | View |
 | IRFBF20PBF#C466977VISHAY · TO-220AB | VISHAY | TO-220AB | 1,531 | ₹126.60 · 1,531 in stock | View |
 | SIHA11N80AE-GE3#C3290252VISHAY · TO-220 | VISHAY | TO-220 | 38 | ₹208.61 · 38 in stock | View |
 | IPA80R1K0CE#C672250Infineon · TO-220-3 | Infineon | TO-220-3 | 3,000 | ₹201.86 · 3,000 in stock | View |
