TIDatasheet (PDF)

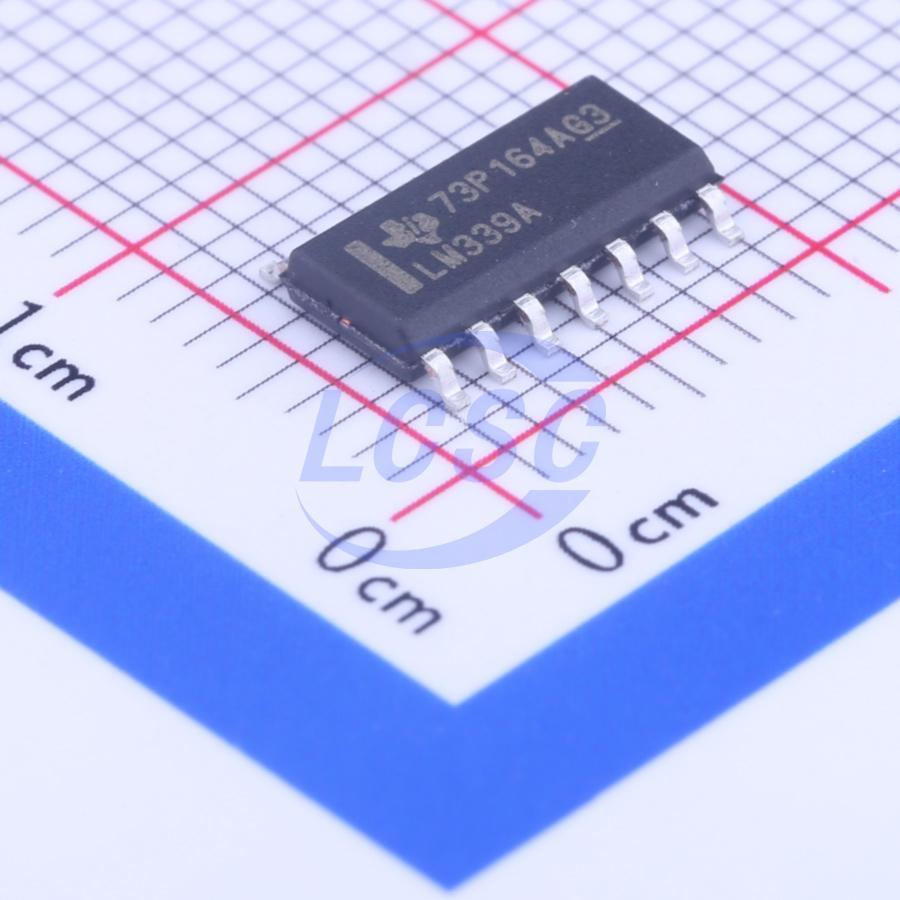

LM339ADR
Four channels 800uA 2mV Rail-to-rail input SOIC-14 Comparators RoHS
SOIC-14ROHS3 CompliantActive
Quad Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM339ADR
- Store part #
- C74559
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,250 in stock
#C74559
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.05 | ₹140.25 |
| 50+ | ₹22.56 | ₹1,128.00 |
| 150+ | ₹20.19 | ₹3,028.50 |
| 500+ | ₹17.25 | ₹8,625.00 |
| 2,500+ | ₹14.98 | ₹37,450.00 |
| 5,000+ | ₹14.20 | ₹71,000.00 |
5 × ₹28.05
₹140.25
excl. GST
₹165.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM339ADR
₹140.25 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
Applications
- Industrial
- Automotive
- HEV/EV and Power Trains
- Infotainment and Clusters
- Body Control Modules
- Power Supervision
- Oscillators
- Peak Detectors
- Logic Voltage Translation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM339-HXY#C18198379HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 2,200 | ₹11.81 · 2,200 in stock | View |
 | LM339DTR(XBLW)#C19267475XBLW · SOP-14 | XBLW | SOP-14 | 2,080 | ₹11.44 · 2,080 in stock | View |
 | LM339DR235#C51026327GREENMICRO · SOP-14 | GREENMICRO | SOP-14 | 270 | ₹7.62 · 270 in stock | View |
 | XL339#C561291XINLUDA · SOP-14 | XINLUDA | SOP-14 | 180 | ₹10.21 · 180 in stock | View |
 | LM339G-S14-R#C71100UTC · SOIC-14 | UTC | SOIC-14 | 1,425 | ₹18.50 · 1,425 in stock | View |
