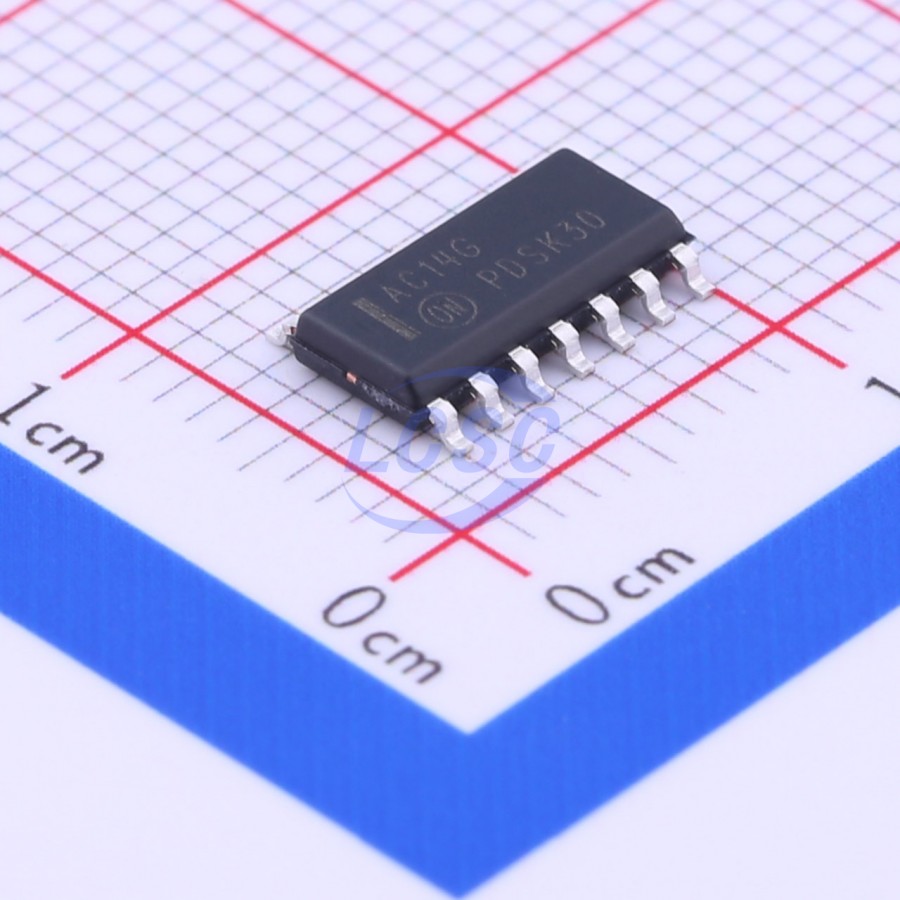

MC74AC14DR2G
Schmitt trigger 2V~6V 10ns@5V,50pF 4uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Inverter Schmitt Trigger High-Performance Silicon-Gate CMOS
- Manufacturer
- onsemi
- Manufacturer part #
- MC74AC14DR2G
- Store part #
- C233516
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,130 in stock
#C233516
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.02 | ₹210.10 |
| 50+ | ₹32.89 | ₹1,644.50 |
| 150+ | ₹28.97 | ₹4,345.50 |
| 500+ | ₹23.27 | ₹11,635.00 |
| 2,500+ | ₹21.10 | ₹52,750.00 |
| 5,000+ | ₹19.79 | ₹98,950.00 |
5 × ₹42.02
₹210.10
excl. GST
₹247.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74AC14DR2G
₹210.10 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 10ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV~1.1V
- Input Logic Level - High
- 2.2V~3.9V
- Output Logic Level - High
- 2.46V~4.76V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC74AC14/74ACT14 contains six logic inverters which accept standard CMOS Input signals (TTL levels for MC74ACT14) and provide standard CMOS output levels. They are capable of transforming slowly changing input signals into sharply defined, jitter−free output signals. In addition, they have a greater noise margin then conventional inverters. The MC74AC14/74ACT14 has hysteresis between the positive−going and negative−going input thresholds (typically 1.0 V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
Key features
- Schmitt Trigger Inputs
- Outputs Source/Sink 24 mA
- MC74ACT14 Has TTL Compatible Inputs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AC14SCX#C5482onsemi · SOIC-14 | onsemi | SOIC-14 | 20 | ₹37.60 · 20 in stock | View |
 | SN74AC14DR#C352942TI · SOIC-14 | TI | SOIC-14 | 8,719 | ₹44.02 · 8,719 in stock | View |
 | 74HC14#C5356103JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 15,960 | ₹12.98 · 15,960 in stock | View |
 | 74HC14-HXY#C7427350HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 10 | ₹17.27 · 10 in stock | View |
 | 74HC14D#C699447HTC · SOIC-14 | HTC | SOIC-14 | 5,790 | ₹41.61 · 5,790 in stock | View |
