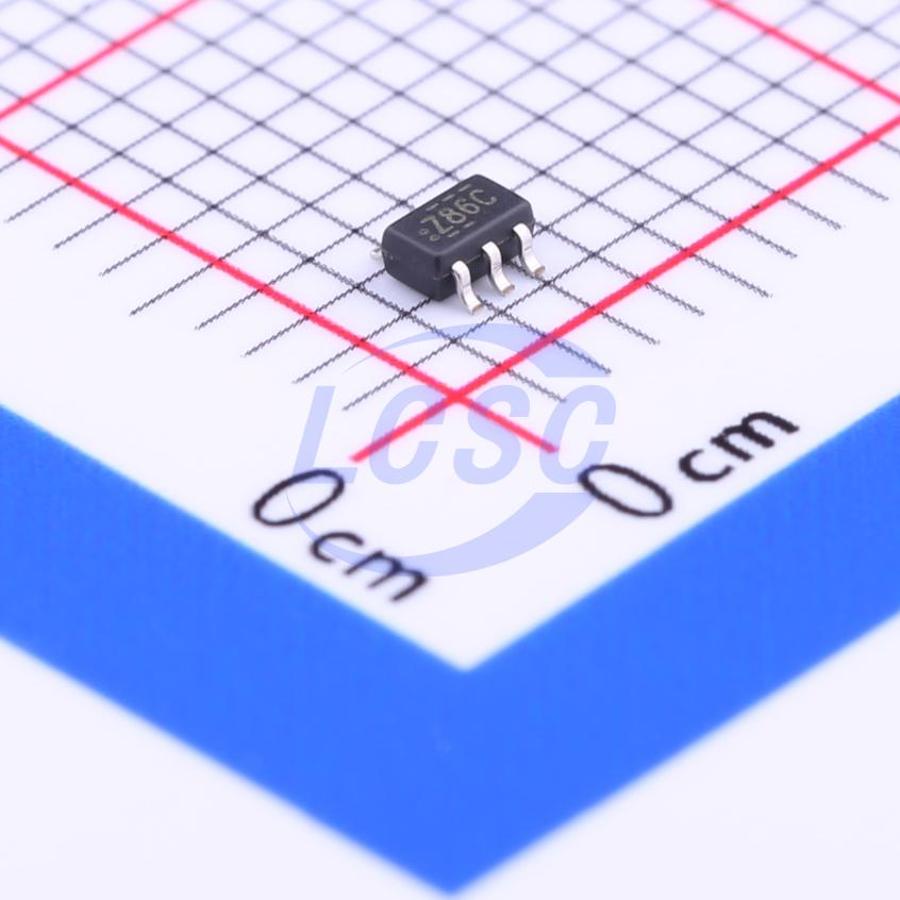

TinyLogic UHS Two-Input Exclusive-OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ86P5X
- Store part #
- C232792
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,680 in stock
#C232792
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.63 | ₹76.30 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.63
₹76.30
excl. GST
₹90.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ86P5X
₹76.30 for 10 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 5.4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NC7SZ86 is a single two−input exclusive−OR gate from onsemi’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
Key features
- Ultra−High Speed: tpD = 2.9 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SOT23−5, SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
