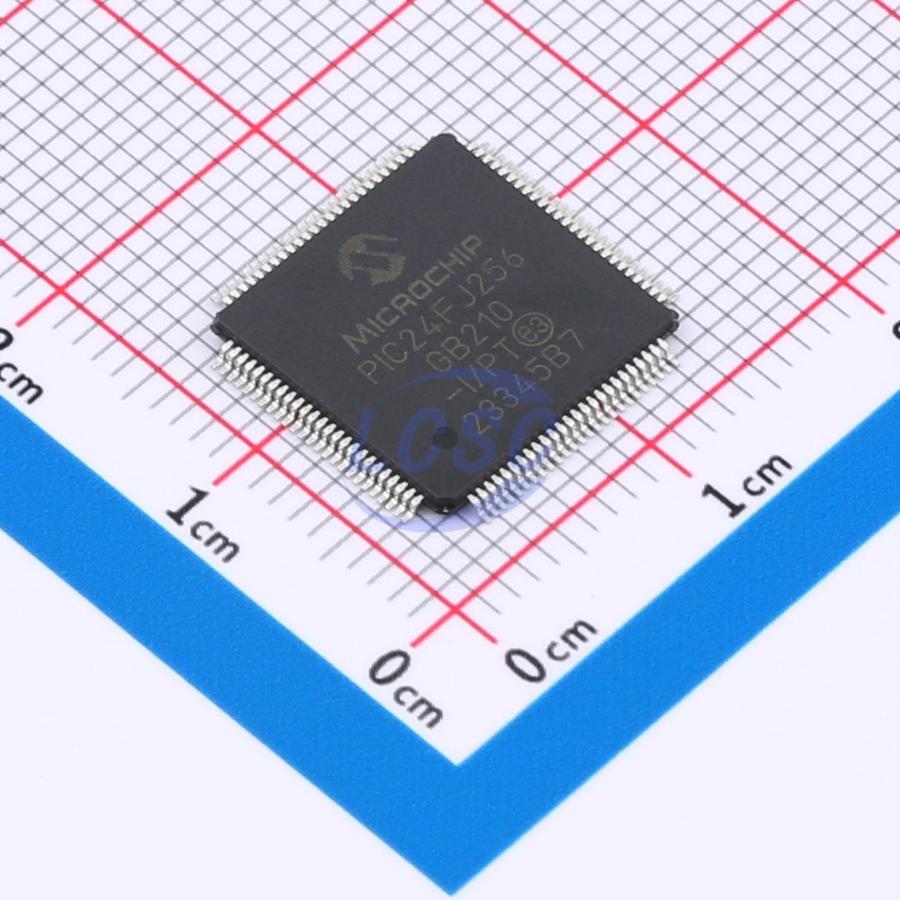

PIC24FJ256GB210-I/PT

Key features

• USB v2.0 On-The-Go (OTG) Compliant
• Dual Role Capable – Can act as either Host or Peripheral
• Low-Speed (1.5 Mbps) and Full-Speed (12 Mbps) USB Operation in Host mode
• Full-Speed USB Operation in Device mode
• High-Precision PLL for USB
• Supports up to 32 Endpoints (16 bidirectional): USB module can use the internal RAM location from 0x800 to 0xFFFF as USB endpoint buffers
• On-Chip USB Transceiver with Interface for Off-Chip Transceiver
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• On-Chip Pull-up and Pull-Down Resistors
• Enhanced Parallel Master Port/Parallel Slave Port (EPMP/PSP): Direct access from CPU with an Extended Data Space (EDS) interface, 4, 8 and 16-bit wide data bus, up to 23 programmable address lines, up to 2 chip select lines, up to 2 Acknowledgement lines (one per chip select), Programmable address/data multiplexing, Programmable address and data Wait states, Programmable polarity on control signals
• Peripheral Pin Select: Up to 44 available pins (100-pin devices)
• Three 3-Wire/4-Wire SPI modules (supports 4 Frame modes)
• Three I²C modules Supporting Multi-Master/Slave modes and 7-Bit/10-Bit Addressing
• Four UART modules: Supports RS-485, RS-232, LIN/J2602 protocols and IrDA
• Five 16-Bit Timers/Counters with Programmable Prescaler
• Nine 16-Bit Capture Inputs, each with a Dedicated Time Base
• Nine 16-Bit Compare/PWM Outputs, each with a Dedicated Time Base
• Hardware Real-Time Clock and Calendar (RTCC)
